| Product Name |
: |
RFID Code Verifier
Proximity Reader |
| |
|
|
| Model No. |
: |
PCR210
Series |
| |
|
|
| Introduction |
: |

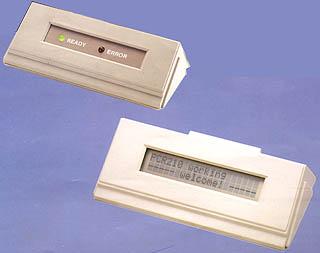

PCR210 Series
RFID Code Verifier is so-called RFID card reader
and it is based on RFID technology. So it
can read RFID transponders contactlessly.
Each RFID transponder is written with an unique
code duing manufacturing process. This code is
the identification of each transponder.
PCR210 is designed for verifying the code number
of the RFID transponder, such as RFID card, tube
etc. |
| |
|
|
| Features |
: |
*Read RFID
transponders contactlessly, such as RFID cards,
tags, tubes
*Verify the code number of RFID
transponders
*RS-232 interface
*PCR210
is equipped with 20 x 2 LCD display to show the
RFID code *number and can be used as an off-line
stand alone unit
*Decimal or Hexadecimal
code number selectable
*Digits of the code
number selectable
*Audible beeper to show
reading status |
| |
|
|
| Specifications |
: |
Power Requirement: DC
9V, 300mA
Reading Range: Up to 10 cm
Frequency: 125 KHz
Interface: RS-232,
Baud rate selectable
None parity, 8 Data
bits, 1 Stop bit
Dimensions:W134.2 x H38.4 x
D65.4mm
Operating Temperature: 0 to 55 Deg.
C
Storage Temperature: -25 to 65 Deg. C
Humidity: 5~95% RH
Note: The Specification is subject
to change without notice. |
| |
|
|
| Application |
: |
Verifying RFID code number
Personal indentification
POS
system
Security Systems
Access
Systems |
| |
|
|
| Available versions |
: |
*PCR210 with 20 x 2
LCD display
*PCR212 without LCD
display
*PCR230 keyboard emulation
|
| การใช้งาน |
|
* ใช้อ่านและแสดงหมายเลขบัตร Prox. |
