Products Card Finger Print Reader

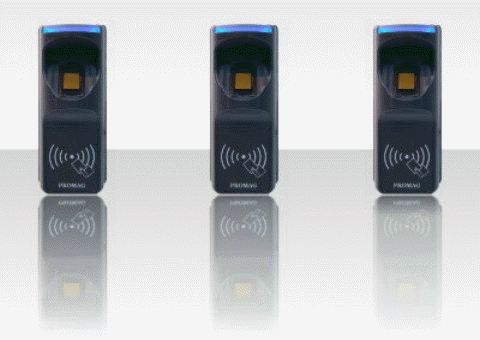

SF600 Fingerprint Reader
Fingerprint Reader



Product Name
:
SmaFinger Reader
Model No.
:
SF600
Introduction
:
SmaFinger is a fingerprint reader developed on the so-call contactless smart card 13.56 Mhz RFID technology. The integration of biometric technology by fingerprint identification and 13.56Mhz RFID technology make Smafinger be capable of biometric and contactless performance without spending large amount of expenses in running system upgrading with fingerprint system extension. On the aspect of personal privacy issue, SmaFinger supply the high secure of protection on privacy concern due to every fingerprint is stored on a card. Also the reader itself supports Mifare MAD1/MAD2 format make user end be able to issue their customized ID cards.
Features
:
To operate this SmaFinger reader there are three access modes in card only or card + Fingerprint or Fingerprint only type.  Furthermore, Mode of Fingerprint only is also able to access functions of card enrollment and deletion. No need to apply extra on-line system or equipment to build up the fingerprint database.
Specifications
:
Model No.            SF600
Application          Stand alone Mifare sector reader
Access Mode
Card Only            Supported
Card + Fingerprint Enroll Mode : No need
Fingerprint Capacity: Unlimited
Fingerprint Validation: 1:1
Performance: Security
Fingerprint Only Enroll Mode: RS232 or Enroll Card
Fingerprint Capacity: 1900
Fingerprint Validation : 1:N
Performance: Fridenly
Identification speed: <1 sec (1:1), <3 sec (1:N)
Max Card Template Capacity :2
Mifare Card Type : 1K/4K
Card Format: For MAD1/MAD2 Only
Configurable Interface: RS232/RS485     : 2400~57600 bps
                                 Wiegand             : 26~128 bits
                                 ABA-TK2            : 2~24 Digital Codes
Mifare Read Distance: Max. 50mm
Power Consumption: Max. 200mA @ DC12V
Dimension: 130H x 54 W x 43 D mm
Note: The Specification is subject to change without notice.

Application
:
Time attendance
Access control and Hotel locker management
Cash card or card cash
Membership card
Driving license or Personal ID Identification
Log in system
Wiegand devices or ABA-TK2 compatible



Download
:
SmaFinger Reader SF600 Catalog

SmaFinger Reader SF600 Presentation in Flash format

Introduction to Intelligent Biometric Reader SmaFinger Reader SF600

How to Use SmaFinger Reader SF600
