Products Digital Video System : Discover Digital CCTV



High Speed Dome (5"Φ)

DIS-SD3500 / DIS-SD2700 / DIS-SD2300 / DIS-SD2200

Outdoor and indoor high speed dome with most advance features including multi-protocols, OSD setting menu, patterns scanning memory, privacy masking etc.. Constructed with low noise precision mechanism housed in aluminium housing with various mounting accessories and hardwares. Support up to 35X optical zoom.

DIS-SD3500 DIS-SD2700 DIS-SD2300 DIS-SD2200
bullet 35X Optical Zoom
bullet 12X Digital Zoom
bullet 540 TVL
bullet Electronic Image Stabilizer (EIS)
bullet Progressive Record direct to HDD
bullet High Sensitivity F1.4 Lens
bullet Wide Dynamic Range (WDR)
bullet Day / Night Switch
bullet 27X Optical Zoom
bullet 10X Digital Zoom
bullet 480 TVL
bullet Day / Night Switch
bullet 23X Optical Zoom
bullet 10X Digital Zoom
bullet 480 TVL
bullet Wide Dynamic Range (WDR)
bullet Privacy Zoom Masking
bullet Day / Night Switch
bullet 22X Optical Zoom
bullet 12X Digital Zoom
bullet 480 TVL
bullet AI / Fuzzy Picture
bullet 2H Vertical Enhancer

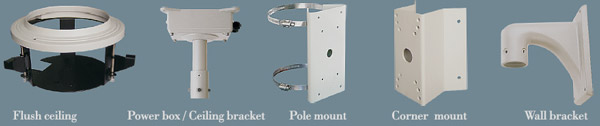

Accessories

Dome Specification
Type
Indoor
Outdoor (UT)
Panning Range 360° continuous
Pan Speed 0.5° ~ 300° / sec
Tilt Range 0° ~ 90° (auto flip)
Tilt Speed 0.5° ~ 150° / sec
Communication RS-485
Protocol Multi-protocols selectable
Preset 80 position
Auto Pan On / Off
Patterns Up to 4 user defined patterns
Power Source 24 VAC
Dimension Φ 133 x 222 mm (H)
Weight Approx 2 kg Approx 4.5 kg


Notes: For the camera module specification, please refers to [Camera Module]..
