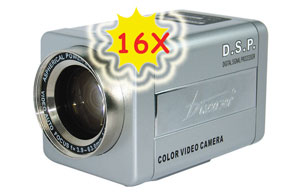

16X Optical Zoom Camera
Compact Zoom Camera
DIS-816C



bullet Advanced OSD Menu
bullet 16X Optical Zoom
bullet Excellent Picture Quality
bullet f:3.8~63mm focal length can meet both wide & tele view

Specification
Model
DIS-816C
Image Sensor 1/4" Sony CCD
Signal Format PAL / NTSC
Scanning System Interlacing scanning
Total Pixels (H x V) PAL: 795 x 596 NTSC: 811 x 508
Zoom 16X Optical
8X Digital
Total zoom ration: 128X
Lens F1.6(W) F2.4(T) f:3.9~63mm
Zoom Speed 3 sec / 6 sec
Angle Of View 49° (Wide) 2.7° (Tele)
Min Focal Distance 0.01m (Wide) 1.0m (Tele)
Min Illumination 1 Lux
Horizontal Resolution 480 TVL
S/N Ratio > 48dB
Video Output 1.0 Vp~p composite 75ohm
Sync System Internal / external (power supply)
Camera Control RS232
Operating Temperature 0 ~ 60°C (recommended 0 ~ 40°C)
Humidity 0 ~ 85%RH
Power Supply DC12V±3V
Power Consumption 4.3W
Weight 350g
