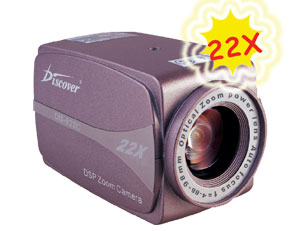

22X Optical Zoom Camera
Compact Zoom Camera with built-in decoder
DIS-822C / DIS-822CD / 822EX



bullet RS232 / RS485 Communication
bullet Built-in Decoder
bullet Pelco-P / Pelco-D Protocol
bullet Baud-rate Selectable
bullet 480 TVL

Specification
Model
DIS-822C
DIS-822B
DIS-822EX
Image Sensor 1/4" Sony CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing
Total Pixels (H x V) PAL: 795 x 596  NTSC: 811 x 508
Zoom 22X Optical
12X Digital
Total zoom ration: 264X
Lens F1.6 f:4~88mm
Zoom Speed 3.9 sec / 6.3 sec
Angle Of View 47.3° (Wide)  2.2° (Tele)
Min Focal Distance 0.01m (Wide) 1.0m (Tele)
Min Illumination 1 Lux F1.6 1 Lux (1/50s)
0.06 Lux (1/3s)
0.03 Lux (1/1.5s)
Horizontal Resolution 480 TVL
S/N Ratio > 50dB
Video Output 1.0 Vp~p composite 75ohm
Sync System Internal / External
Color / Mono Switch No Yes No
Camera Control RS232 / RS485 (built-in decoder)
Protocol Pelco-P / Pelco-D (auto detect)
Baud Rate 4800 / 9600 bps
Operating Temperature 0 ~ 60°C (recommended 0 ~ 45°C)
Humidity 0 ~ 85%RH
Power Supply DC12V±0.5V
Power Consumption 4.0W 4.7W
Weight 622g
