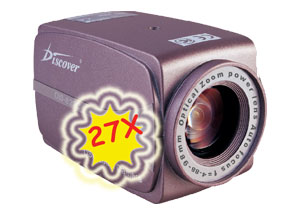

27X Optical Zoom Camera
Compact Zoom Camera
DIS-827C / DIS-827S



bullet Advanced OSD Menu
bullet 27X Optical Zoom
bullet 10X Digital Zoom
bullet 480 TVL
bullet Progressive Scanning (DIS-827S only)
bullet Dynamic Motion Function
bullet IR-Cut Filter
bullet RS-232 Communication (TTL selectable)

Specification
Model
DIS-827C
DIS-827S
Image Sensor 1/4" Sony CCD
Signal Format PAL / NTSC
Scanning System Interlacing scanning Progressive scanning
Total Pixels (H x V) PAL: 795 x 596  NTSC: 811 x 508
Zoom 27X Optical
10X Digital
Total zoom ration: 270X
Lens F1.5(W)  F3.8(T)  f:3.6~98mm
Zoom Speed 5 / 7 / 9 sec
Angle Of View 55° (Wide)  2.4° (Tele)
Min Focal Distance 0.01m (Wide) 1.0m (Tele)
Min Illumination Color: 0.3 Lux
Mono: 0.01 Lux
0 Lux (with IR illuminator)
Color: 0.3 Lux
Mono: 0.01 Lux
IR Wavelength 800nm -
IR Cut Filter Yes No
Zoom / Focus 64 modes (storage in the internal memory)
Horizontal Resolution 480 TVL
S/N Ratio > 50dB
Video Output 1.0 Vp~p composite 75ohm
Sync System Internal /  External (power supply)  / Auto
Color / Mono Switch Yes
Camera Control RS232
Operating Temperature 0 ~ 60°C (recommended 0 ~ 40°C)
Humidity 0 ~ 85%RH
Power Supply DC12V±3V
Power Consumption 5.4W
Weight 580g
Dimension 125.5 x 64 x 74.5mm
