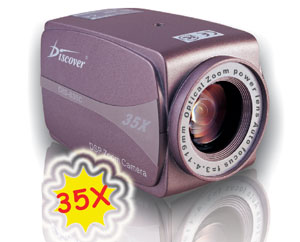

23X & 35X Optical Zoom Camera
Compact Zoom Camera with built-in decoder
DIS-823C / DIS-835C



bullet Advanced OSD Menu
bullet Progressive Scanning
bullet Wide Dynamic Range (WDR)
bullet Electronic Image Stabilizer (DIS-835C only)
bullet Flexifocal Lens
bullet Digital Slow Shutter
bullet Privacy Zone Masking
bullet RS232 / RS485 Communication
bullet Built-in Decoder
bullet Pelco-P / Pelco-D Protocol
bullet Baud-rate Selectable
bullet IR Filter On / Off

Specification
Model
DIS-823C
DIS-835C
Image Sensor 1/4" Sony CCD
Signal Format PAL / NTSC
Scanning System Progressive scanning
Total Pixels (H x V) PAL: 795 x 596  NTSC: 811 x 508
Zoom 23X Optical
12X Digital
Total zoom ration: 276X
35X Optical
12X Digital
Total zoom ratio: 420X
Lens F1.6 f:3.6~82.8mm F1.4 f:3.4~119mm
Zoom Speed 4.2 sec / 5.8 sec 4.6 sec / 6.6 sec
Angle Of View 54° (Wide)  2.5° (Tele) 55.8° (Wide) 1.7° (Tele)
Min Focal Distance 0.01m (Wide) 1.0m (Tele)
Min Illumination 1 Lux (IR-Cut On, Color: 1/50s)
0.2 Lux (IR-Cut On, Color: 1/3s)
0.1 Lux (Color: 1/1.5s)
0.02 Lux (IR-Cut Off, B/W: 1/3s)
0 Lux (with IR illuminator)
0.5 Lux (IR-Cut On, Color: 1/50s)
0.05 Lux (IR-Cut On, Color: 1/3s)
0.02 Lux (Color: 1/1.5s)
0.01 Lux (IR-Cut Off, B/W: 1/3s)
0 Lux (with IR illuminator)
IR Wavelength 850~950nm
IR Cut Filter Yes
Wide Dynamic Range (WDR) Yes
Electronic Image Stabilizer (EIS) No Yes
Motion Detect Yes
Horizontal Resolution 480 TVL 540 TVL
S/N Ratio > 50dB
Video Output 1.0 Vp~p composite 75ohm
Sync System Internal / Line-lock
Color / Mono Switch Yes
Sygnal Processor DSP-6 DSP-7
Camera Control RS232 / RS485 (built-in decoder)
Protocol Pelco-P / Pelco-D (auto detect)
Baud Rate 4800 / 9600 bps
Operating Temperature 0 ~ 60°C (recommended 0 ~ 45°C)
Humidity 0 ~ 85%RH
Power Supply DC12V±0.5V
Power Consumption 5.0W with WDR 3.8W with WDR
Weight 580g
