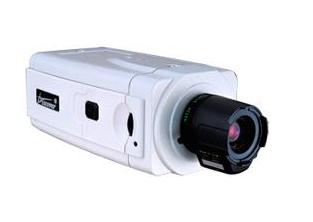

Professional Traffic Surveillance Camera
DIS-529DN / DIS-539DN



bullet 1/2", 1/3" Interline Sony Exview HAD CCD
bullet Sony 10bit A/D DSP picture optimization and OSD adjustment control
bullet Intelligent double filter switch, color mode 540TVL, monochrome mode 600TVL
bullet Double filter multi control modes
bullet Filter definition: in the day purity color, in the night no anamorphic mono image
bullet Receive IR spectrum 700~1100nm
bullet S/N ratio > 50dB
bullet Coloc display and control function, picture positive/negative function
bullet 225 auto backlight detect areas, weighted backlight window control
bullet Internal synchronization/line-lock synchronization auto switch
bullet Lens drive: DC drive/Video drive auto iris lens
bullet Special lens mounting design suitable for both C/CS lens and enable easy focal lenght adjustment for high power zoom lens
bullet RS-232 remote control function, GPIO control interface

Specification
Model
DIS-529DN
DIS-539DN
Image Sensor 1/2" Sony Exview HAD CCD  1/3" Sony Exview HAD CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing scanning
Total Pixels (H x V) PAL: 795 x 596 / NTSC: 811 x 508
Sync System Internal / Power supply
Horizontal Resolution Color: 540TVL / Monochrome: 600TVL
Minimum Illumination Color: 0.001 Lux F1.2
Monochrome: 0.0001 Lux F1.2
IR 0Lux
IR Wavelength 700 ~ 1100nm
Min Focal Distance Manual/Auto/Pre-contract/Duplex Mode (External I/O signal)
Filter Switch Illumination Range 1~3 Lux adjustable
Filter Switch Time 10~60 sec
Gain 36dB
S/N Ratio >50dB
White Balance ATW 2500°K ~ 9600°K Manual / Preset
Gamma Value 0.45/1
Backlight Compensation 225 zones backlight compensation auto detect function
Video Output 1.0Vp-p composite output, 75Ω, BNC
Lens Manual / Auto Iris Lens (DC / Video drive)
Lens Mount C/CS mount
Menu Display Yes
Auto Exposure Functions 4 modes selectable
Standard Auto Iris Mode 1/50 sec
Auto Electronic Shutter 1/50 ~ 1/100,000 sec
Manual Electronic Shutter  1/50, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec
Auto Iris + Electronic Shutter  1/50, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 sec
Power Supply / Consumption  DC12V 5.5W / AC24V 6.0W
Operating Temperature  -10°C ~ +50°C
Weight 550g
Dimension 140 x 71 x 52m
