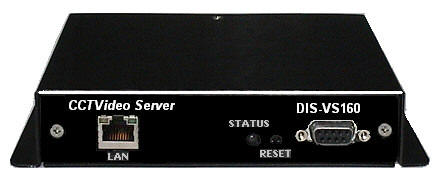

DIS-VS160 CCTVideo Server
Convert existing CCTV systems into IP based solution with
Unlimited Possibilities



Application

DIS-VS160 offer professional CCTVideo server that enable you to convert your existing analog CCTV system into an IP-based solution. Unlimited Possibilities with latest Digital Technology enables simplicity, flexibility and remote accessibility.CCTVideo Server can be integrated to your existing CCTV system and starts broadcasting High Quality Images over the internet. DIS-VS160 uses the most advanced image compression technology to provide TV Quality Video over IP networks, such as a LAN, intranet or Internet. You can view live images and control the camera pan/tilt /zoom, using a Web browser or an application software on any local or remote computer on a network. Audio is available with optional module. Authorized viewers from different locations can access images simultaneously. DIS-VS160 is built on open standards architecture and is entirely software upgradeable for today’s applications and also provision for future growth.


Specification

Network Interface Ethernet 10/100 Base-T
Network Protocols Transport: TCP, UDP, RTP or multicast IP
Authentication Security SSL-Based Authentication
Video Input 1 Composite, 1Vp~p 75 Ohm (PAL/NTSC)
Video Output 1 Composite, 1Vp~p 75 Ohm (PAL/NTSC)
Compression Technology MPEG4
Resolution 176 x 144 / 720 x 576 (PAL) : 176 x 120 / 720 x 480 (NTSC)
Frame Rates Up to 25 fps (PAL) : Up to 30 fps (NTSC)
Bandwidth Between 30kbps ~ 4Mbps (selectable)
Bidirectional Audio (Optional) Input –46 to –3 dBV into 1 kOhm : Output –46 to –3 dBV into 16 Ohms min
Audio Connectors 3.5mm diameter stereo jacks
Serial Ports RS-232, DB-9 serial port for access control / configuration :
RS-422/482 serial port for domes/cameras control
Alarm Input 3 dry contact
Alarm Output 1 relay contact rated at 48V AC/DC, 100mA Max
Supply Voltage 12 VDC
Power Consumption 6W (up to 500mA at 12 VDC)
Physical Dimension 115L x 142W x 32H mm
Weight 0.38 Kg
Operating Temperature 0° ~ 50°C
Humidity 95% non condensing at 50°C
Remote Monitoring Software Via nDVMS (Network Digital Video Management System)
software, support Internet Explorer (5.5 and up)
Local Control Via serial port using any ASCII terminal
Firmware Upgrade Flash memory for upgrade of video Codec and application firmware over the network
Warranty Period One year standard. Extended warranty optional

See Also nDVMS Network Digital Video Management System Software for VS-160 Video Server
