DIS-9500IP Series MPEG4

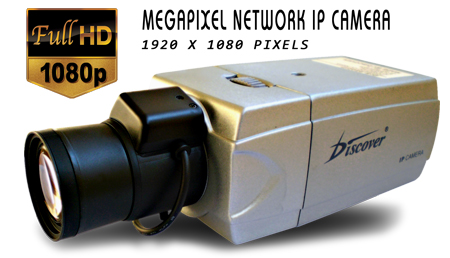

H.264 5.0 Megapixel Network IP Camera
DIS-9500IP Series Megapixel
High Resolution Network Camera incorporating
latest H.264 Main Profile @ Level 4.1
compression algorithms. For the same picture
quality, in comparison with standard MPEG4
bit rates, DIS- 9500IP series megapixel camera bit rate is 50% lower.
Equipped with Progressive Scan 5-Mega Pixel CMOS, smooth
reproduction of images with moving subjects.
Supports YPbPr High Resolution analog video
output. Real time dual streaming of H.264
1080p, recording is compatible with standard
decoder. Local SD Card recording or remote
via network recording. Built-in WEB Server,
supports WEB browsing and management. For
large scale integration, use DISCOVER Central Management Software (CMS)
DIS-HD3000.
PoE
(Power over Ethernet) feature as option.
Easy operation, easy installation, unlimited
possibilities with standard IP
infrastructure!
DIS-9500IP series is ideal
for banks, office buildings, shopping malls,
airport, train stations, harbour, schools
and most cctv surveillance applications.
|
MPEG4 H.264 video compression technology
|
|
High Resolution Progressive Scan 1/2.5-Inch
5-Mega Pixel CMOS
|
|
Broadcast picture quality, maximum 1080TVL,
minimum illumination 0.8 Lux
|
|
1080P(1920 x 1080/30fps) real time dual
streaming
|
|
True ISO H.264 Main Profile @ Level 4.1 dual
bit rates
|
|
Supports SD/SDHC memory card slot, backup
during network failure
|
|
RJ45 Port 10M/100M
|
|
PoE(IEEE802.3af) PoE (Power over Ethernet
(Optional)
|
|
Supports SDIO Wi-Fi 54 Mbps Wireless LAN
card (Optional)
|
|
Supports 1080p, 720p, D1, VGA, and
CIF-resolution
|
|
Supports FTP recording server
|
|
Supports RTSP protocol
|
|
Supports 1080p+CIF, 720p+CIF dual bit rates,
browsing live and recording independently
|
|
Built-in WEB Server, supports WEB format
browsing and management
|
|
Motion-detection and motion trigger
recording
|
|
Supports Digital Watermark, for easy
authentication
|
|
RS485 Com Port, support multi-protocol for
PTZ controls
|
|
Support 2-Video Output, Network and Analog
video output simultaneously
|
|
Standard Alarm I/O terminals, bi-directional
audio and RS485 port and YPbPr High
Resolution analog video output
|
|
Supports PPPoE, DDNS(Dynamic Domain Name)
|
|
Supports UPnP protocol
|
|
Large scale integration with Central
Management Software (CMS) DIS-HD3000
|
Highlight
Megapixel
|
DIS-9500IP Series Mega
Pixel Color Network Camera with a 5-Mega Pixel CMOS Imager,
smoothly deliver images of moving
subjects. The DIS-9500IP series delivers
Crisp Clear High Resolution picture with
greater details as compared with a
conventional analog camera. Progressive
Scanning and dual streaming delivers
seamless motion picture as compared to
the conventional interlace scanning
system.

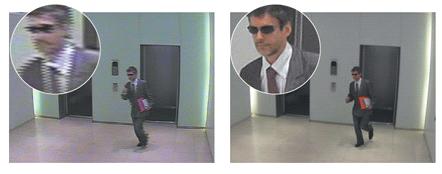

Picture: 10X digital zoom comparison
between analog camera & 720p
megapixel camera
|
Real Time Monitoring
|
DIS-9500IP Series Mega
Pixel Network Camera enables high
resolution transmission up to 30 fps for
real time live monitoring, with
resolution up to 1080p(1920x1080). As compare to
some low-cost non real-time IP cameras,
user not only can see seamless motion
picture in near HD also will not miss
any detail due to slower picture updates
in the case of non real time IP camera.
Simultaneously output of High Resolution
of 1080p and CIF pictures, separately
for real-time recording and live
monitoring.
|
True ISO H.264 Main Profile @
Level 4.1
|
DIS-9500IP Series Mega
Pixel Network Camera uses H.264 Main
Profile @ Level 4.1 compression
algorithm. For the same picture quality,
in comparison with standard MPEG4 bit
rates, DIS- 9500IP series Mega Pixel camera bit rate is 50% lower. Standard
ISO H.264 recording is compatible with
most decoder, flexibility and
compatibility. Supports various
resolutions both for recording and
transmission: 1080p(1920x1080),
720p(1280x720), Full D1(720x576), VGA
(640x480) and CIF(352x288).
|
H.264 Dual Streaming
|
DIS-9500IP Series Mega
Pixel Network Camera delivers
simultaneously 1 channel of 30 fps with
1080p(1920x1080) and 1 channel of 25 fps
with CIF (352x288) resolution. The High
Resolution of 720P format for recording
and the other CIF format for faster
transmission in the network environment.
This is the Dual Streaming function of
the DIS-9500IP series,
with individual settings for picture
quality, bit rates, frame rates etc..
|
PoE
|
Utilizes IEEE802.3af PoE (Power over
Ethernet), power supply for the camera,
digital picture, alarm signal and RS485
PTZ controls all-in-one Ethernet cable!
Easy installation as well as easy for
maintenance, therefore reducing cabling
and installation costs. Needs to choose
and match the PoE switchboard and the
power supply module.
|
Easy IP Set-up
|
DIS-9500IP Series Mega
Pixel Network Camera supports UPnP
protocol, which provides cameras auto
detect function in the operating system
with specify software, turns on and auto
linking network camera equipments. We
provide "Admin Tool" for easy
configuration, and reduce debugging work
load, also saves the installation and
the maintenance cost.
|
Flexible Alarm Handling
|
DIS-9500IP Series Mega
Pixel Network Camera supports video loss
alarm, lens blocked alarm, sensitivity
adjustable motion detection alarm, also
supports various external alarm sensors
or command alarms trigger from other
equipments on the network.Various
flexible alarm handlings including high
resolution captures in SD memory card or
FTP server forwarding features or Email
notification upon alarm triggers. In
large scale integration, alarms
automatically transmit to DISCOVER
Central Management Software
(DIS-HD3000). Alarm output can be
connected to activate lights, buzzers,
sirens or other external signaling
devices. Independent user settings for
motion detection and alarm sensor inputs
, pre- and post-alarm recordings.
|
User Management
|
DIS-9500IP Series Mega
Pixel Network Camera provides multi
levels user authorization and
permission. Different user with
different authorized operation enabled
or disabled. A truly purpose built
security product with multi passwords
authorization.
|
Privacy Zone
|
DIS-9500IP Series Mega
Pixel Network Camera allows Privacy Zone
Masking. Prevent display of sensitive
areas or zones for privacy reasons.
|
OSD and Water-Mark
|
DIS-9500IP Series Mega
Pixel Network Camera built-in with date
time generator OSD function. Display
position and grey level is user
programmable. Supports Digital
WATER-MARK for authentication of
recorded pictures.
|
USB/SD Memory Backup
|
DIS-9500IP Series Mega Pixel Network Camera is
equipped with miniUSB port and SD
memory card slot. In case of alarm
trigger, recording to an USB
external drive or to SD memory card
slot for back up.This can prevent
loss of important alarm captures
during network down time. Note that
the USB port DIS- 9500IP
series uses standard
USB2.0, good for transmission up to
480Mbp; and the SD memory card slot
supports the latest SDHC card too,
not only can store up to 32GB, also
fast writing speed up to 6MB/sec.
|
Bi-directional Audio
|
DIS-9500IP Series Mega
Pixel Network Camera supports
bi-directional audio, enables 2-way
audio-video communication. Able to use
network audio for communication, one to
one or multi-broadcasting.
|
SDIO Wi-Fi
|
DIS-9500IP Series Mega
Pixel Network Camera has optional SD
card slot for WLAN wireless LAN card,
easily converted to wireless IP camera.
|
View and Control
|
DIS-9500IP Series Mega
Pixel Network Camera comes with YPbPr
High Resolution analog output, user can
connect to any analog device or other
cctv equipments.Built-in Web
Server,supports WEB format browsing and
management. DIS-9500IP series complete conformity with Central
Management Software, DIS-HD3000 (free
commercial license up to 16 channel),
which meet the demand of large-and-
middle-scale centralized control of CCTV
project.
|
PTZ Control
|
DIS-9500IP Series Mega
Pixel Network Camera supports RS485
transparent COM port, supports
multiprotocol PTZ controls, allows user
own addition of control protocol.
|
RTSP Protocol
|
DIS-9500IP Series Mega
Pixel Network Camera comes with
RTSP(Real Time Streaming Protocol)
protocol able to support more
transmission protocol when necessary.
|
Specification
|
DIS- 9501IP
|
DIS- 9502IP
|
Camera and Optics
|
CCD Imager
|
1/2.5” Progressive Scan 5-Mega Pixel
CMOS
|
Effective Pixels(HxV)
|
2592H x 1944V
|
Scanning Method
|
Progressive Scan
|
Lens Mounting
|
C/CS
|
White Balance
|
Auto
|
AGC
|
Auto
|
Aperture Control
|
Auto
|
S/N Ratio
|
>50db
|
Lens Drive
|
DC
drive
|
Video/Audio
|
Video Compression
|
Standard H.264 Main Profile @ Level 4.1
|
Audio Compression
|
MP2,AAC (selectable)
|
Maximum Resolution
|
1280x720p(30fps) + 352x288(30fps) dual
streaming
|
1920x1080p(30fps) + 352x288(30fps) dual
streaming
|
Resolution
|
1280x720
|
1920x1080
|
In/Out Connection
|
Analog Video Output
|
YPbPr/CV BS
|
Ethernet Port
|
1
x RJ45,10Base-T/100Base-TX, supports PoE
(IEEE802.3af)
|
Recording Port
|
1
x SD/SDHC card, support SDIO WiFi
(selectable)
|
Wireless Port
|
Wireless card SDIO WiFi 54Mbps
(selectable)
|
USB Port
|
1x
USB
|
Alarm Input/Output
|
1
x input (DC12V, less than 300mA), 1 x
switching output
|
Audio Input
|
1
|
Audio Output
|
1
|
Com Port
|
1
x RS485
|
Functions
|
Software
|
IE, Client’s , DIS-HD3000 CMS (optional)
|
Recording
|
Real time records, Alarm trigger records
|
Storage
|
SD
card, USB removable drive, remote
network storage
|
Alarm Sensor
|
Motion detection, Video loss, Blocked
lens, Contact trigger
|
Alarm Trigger
|
SD
card/USB removable drive, alarm trigger
relay output, FTP server forwarding,
Email notification, client’s alert,
P/T/Z controls
|
Network
|
Protocol
|
TCP/IP, HTTP, SNMP, UPnP, ARP, ICMP,
DHCP, FTP, UDP, DNS, DDNS, SMTP, NTP,
Static IP, (select RTSP/RTMP protocol)
|
General Specifications
|
Power Input
|
DC
12V: 300MA/Power over Ethernet PoE
IEEE802.3af (selectable)
|
Consumption
|
3.6W
|
Operating Temperature
|
-10°C ~ +50°C
|
Humidity
|
<90% (non-condensing)
|
Dimension
|
143x72x58mm (Lens optional, Megapixel
Lens preferred)
|
Weight
|
Approx 500g
|
|
|
|
|
