Thermal Imaging Camera
DIS-D780

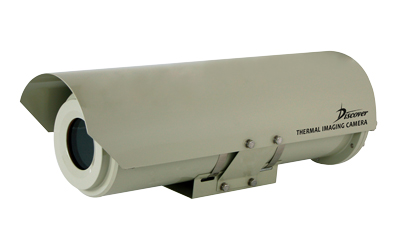

DIS-D780 Thermal Imaging Camera System incorporating the latest generation uncooled infrared sensor technology with high resolution 384x288 pixels FPA detector. The DIS-D780 do not require for additional heating nor cooling in non-stop operation at temperature from -20°C to +60°C, maintain low power consumption while producing low noise high quality image. Available with different fixed Germanium lens configuration for various detection range.

DIS-D780 is designed specially for the most demanding homeland security needs.

Range Performance



Application
bullet Law Enforcement
bullet Marine and Coastal Surveillance
bullet Military Bases
bullet Search and Rescue Operation
bullet Airport and Sea port
bullet Border Security
bullet Covert Surveillance

Specification
Model DIS-D780
Detector Characteristics     Detector Type Uncooled FPA Microbolometer
Array size / Format 384 x 288
NETD ≤100mK@f/1, 300K, 50Hz
Frame Rate  50Hz
Spectral Range  8~14μm
Image Processing    A/D Resolution  14bit
Video D/A  10bit
Start-up Time  <25s (at 25°C ambient temperature condition)

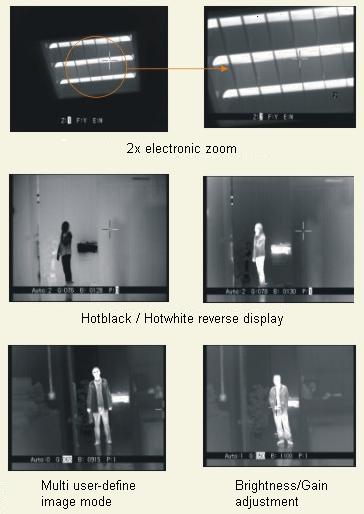

Thermal Image Adjustment    Brightness / Gain Adjustment  Manual / Auto
Auto: 2 fixed modes, 8 user-defined modes
Image Polarity  Hotblack / hotwhite
Noise Reduction  Yes
Image Enhancement Yes
Calibration Manual / Auto
Crosshair On / Off
Image Storage (Optional) Storage Card Built-in flash memory, up to 100 images
File Format JPEG

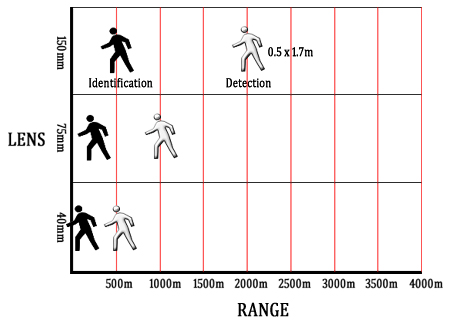

Range Performance
(Object size:0.5 x 1.7m, eg: human)
40mm lens Identification: 150m / Detection: 550m
75mm lens Identification: 250m / Detection: 1000m
150mm lens Identification: 500m / Detection: 2000m

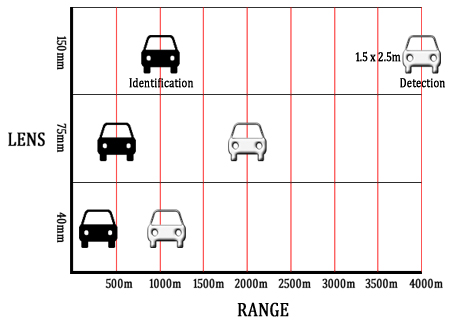

Range Performance
(Object size:1.5 x 2.5m, eg: car)
40mm lens Identification: 300m / Detection: 1100m
75mm lens Identification: 500m / Detection: 2000m
150mm lens Identification: 1000m / Detection: 4000m
Power Supply External Power 10~15V DC, 8V±1V DC
Power Consumption < 4.5W @ 25°C
Driver for Lens Focus Driver capability 8V 100mA
Environment Operating Temperature -40° ~ +60°C
Storage Temperature -40° ~ +70°C
Physical Characteristics Weight Approx 7kg

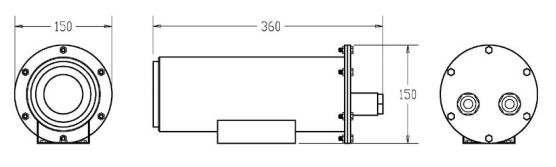

Dimensions Φ150 x 360 mm
Interface External DC Input Yes
Video Output Dual PAL
Control Interface RS232, RS422/RS485
USB Port (Optional) Image transfer
Protection Class Enclosure IP68
