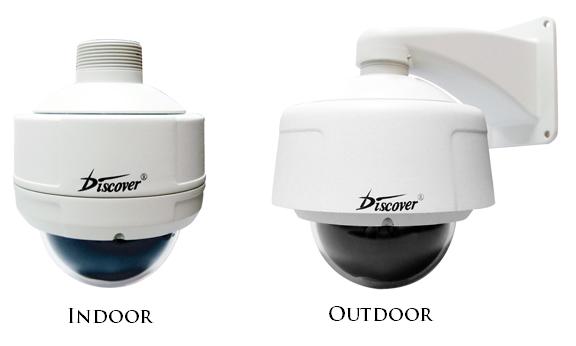

Indoor / Outdoor Mini High Speed Dome

DIS-SD1000S / DIS-SD1000P / DIS-SD1000UT

bullet Alloy die-cast outer enclosure, 4 inches transparent back box, black opaque dome drive and integrated design.
bullet Indoor and outdoor models available.
bullet Precision motor driven, stable operation, without dithering and noises, little heat release.
bullet High reliability, internal data never lost when power is off.
bullet RS-485 return acknowledgment of Pan/Tilt.
bullet The Pan/Tilt OSD positioning and camera zoom displays.
bullet Built-in function menu.
bullet Powering on home position—users can assign the dome movement after power on.
bullet Multi- auto scan mode, the auto- scan speed can be set by built-in menu.
bullet Functions of video freeze, wide dynamic range and backlight compensation.
bullet Day & night camera can be set into single color or single black mode accordingly.
bullet Speed changes proportional to Pan/Tilt and the depth of zoom lens.
bullet Pattern track memory function, can record the preset transfer and all standard PTZ track.
bullet 128 preset positions with precision error less than 0.05°.
bullet Preset speed: 250°/sec for pan, 200°/sec for tilt.
bullet 8 preset tour functions, dwell time can be set to 5~60/sec.
bullet Variable auto tour speed can be set from 1°~40°/sec.
bullet Pan control speed 0.1°~150°/sec, tilt control speed 0.1°~100°/sec.
bullet 360°continuous pan rotation, with auto-flip function.
bullet Built-in surge and lightning protection.
bullet Conform to IP66, CE, ROHS and FCC standards.
bullet Standard PELCO P or D protocol, baud rate: 1200/2400/4800/9600bps.

Specification

Model DIS-SD1000S DIS-SD1000P DIS-SD1000UT
Dome Specification
Type Indoor Outdoor
Mounting Surface Pendent
Pan Speed  0.1°~150°/sec
Tilt Speed 0.1°~100°/sec
Preset Target Pan Speed 250°/sec
Preset Target Tilt Speed 200°/sec
Pan Angle 360° continuous
Tilt Angle  +2°~-92° unobstructed tilt rotation
Preset Tour 8
Input Voltage 24VAC
Power Consumption 20W 40W
Operation Temperature -5°C~60°C -40°C~70°C
Dimension (mm) 141(Φ)x141(L)mm  141(Φ)x179(L)mm   162(Φ)x182(L)mm
Weight (kg) 2.3kg 3.0kg 3.2kg
Camera/Optics Specification
Image Sensor  SONY 1/4” Exview HAD CCD
Active Pixels Approx. 380,000 (NTSC) 440,000 (PAL)
Lens F1.8 4.2~42mm
Zoom Ratio 10x Optical, 12x Digital
Horizontal Resolution 530TVL
S/N Ratio 50dB
Min. Illumination 1.5 Lux
Other Features Electronic-Flip (E-Flip), Multi-Line On-Screen-Display, Video Motion Detection, Position and Custom Preset functions
