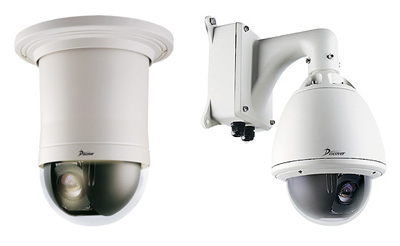

Mid-Range Speed Dome (6"Φ)

DIS-MD2700 / DIS-MD2200 / DIS-MD1600

bullet MIDI mid-range dome
bullet Maintenance free operation
bullet Multi-protocol field selectable
bullet 128 preset point
bullet Auto pan function
bullet 360° continuous horizontal pan
bullet Low noise design
bullet Built-in surge current & lightning protection
bullet Low cost with higher performance
bullet Folllow IP66, CE, FCC standard

DIS-MD2700 DIS-MD2200  DIS-MD1600
bullet 27X Optical Zoom
bullet 10X Digital Zoom
bullet 480 TVL
bullet Auto Panning
bullet Day / Night Switch
bullet 22X Optical Zoom
bullet 12X Digital Zoom
bullet 480 TVL
bullet Auto Panning
bullet AI / Fuzzy Picture Control
bullet 2H Vertical Enhancer
bullet 16X Optical Zoom
bullet 8X Digital Zoom
bullet 480 TVL
bullet Auto Panning


Dome Specification

Type
Indoor
Outdoor (UT)
Panning Range 360° continuous
Pan Speed 0.1° ~ 120° / sec
Tilt Range 0° ~ 100° (auto flip)
Tilt Speed 0.1° ~ 40° / sec
Communication RS-485
Protocol Multi-protocols selectable
Preset 128 position
Preset Tour 8 groups
Protection Built-in surge current & lightning protection
Operating Temperature 0° ~ 50° C -40° ~ 60° C
Humidity 10%RH ~ 90%RH
Power / Consumption AC24V / 20W
Dimension Φ 133.2 × 178 mm (H) Φ 229 × 283.25 mm (H)
Weight 2 kg 5 kg
Quality Control IP66, CE, FCC standard


For the camera module specification, please refers to [Camera Module]..
