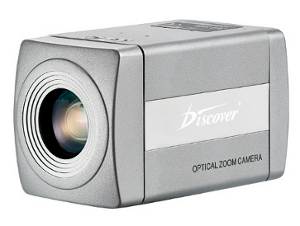

37X Optical Compact Zoom Camera

DIS-837CW

bullet Advanced OSD Menu
bullet 37X Optical Zoom
bullet Excellent Picture Quality
bullet Super Wide Dynamic Range (60dB)
bullet IR Filter
bullet f:3.5~129mm focal length can meet both wide & tele view
bullet 3D Digital Noise Reducing Control
bullet Electronic Image Stablizer

Specification

Model
DIS-837CW
Image Sensor 1/4" Sony Exview CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing scanning
Total Pixels (H x V) PAL: 795 x 596 NTSC: 811 x 508
Zoom 37X Optical
12X Digital
Lens f:3.5~129mm
Angle Of View 55° (Wide) 1.6° (Tele)
Shutter Speed 1/50 ~ 1/90,000s
Min Illumination Color: 0.003 Lux
Mono: 00001 Lux
Day / night Switch Manual / Auto
Horizontal Resolution 540 TVL
S/N Ratio > 52dB
Video Output 1.0 Vp~p composite 75ohm
Sync System Internal / external (power supply)
Camera Control RS232 / RS485
Operating Temperature -10 ~ 50°C (recommended 0 ~ 40°C)
Humidity 0 ~ 85%RH
Power Supply DC12V±3V
Power Consumption 4.7W
Weight Approx 570g
