Network
Video Server
DIS-VS101C / DIS-VS102DC /
DIS-104C / DIS-VS101D / DIS-VS102C

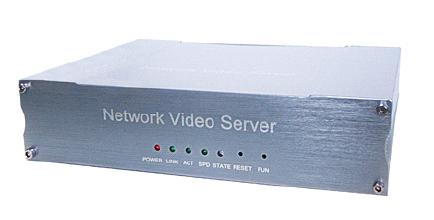

DISCOVER Network Video Server
with embedded DSP processor and real-time
operating system (RTOS), high reliability,
low power consumption, designed to convert
standard analog CCTV cameras into IP camera
solution for easy CCTV surveillance and
remote monitoring solution.
|
Video Compression:H.264
|
|
Audio Compression:MP3
|
|
Video Format:PAL, NTSC
|
|
Picture compression and
transmission format:CIF.
|
|
Selectable Image
Settings, selectable picture quality,
controllable frame rate and bandwidth,
constant and variable bit rate (CBR and VBR).
|
|
Motion detection, alarm
trigger, video loss.
|
|
Events triggered by
motion detection or alarm input recording or
time schedule recording.
|
|
Freely configurable
motion setup and picture quality setup,
motion trigger alarm output or recording.
|
|
Time synchronization
feature.
|
|
Multi users management
and individual user’s authorization.
|
|
Hardware system watchdog
function, self diagnostic enables fail safe
operation.
|
|
Date and Time OSD,
variable display position and variable
display setup.
|
|
Purpose-built security
device, multi-level management, and users
authorization capability.
|
|
PTZ controls, support
most PTZ domes and telemetry receivers,
presets and guard tour setup.
|
|
Flexible and powerful
remote monitoring capability.
|
|
Support both C/S and B/S
network connection structure. Support IE
browser.
|
|
Auto re-establish network
connection and video streaming after a
network link recovered from failure. No
human interaction required.
|
|
Supports network audio
communication, similarly the PA system.
|
|
Supports LAN, WAN, and
various wireless networks, 10M/100M.
|
|
Support PPPoE and DDNS
protocol.
|
|
Supports 100Kbps~2Mbps
bit rates selectable, suitable for any
bandwidth for smooth and efficient video
streaming.
|
Specification
Model
|
DIS-VS101C
|
DIS-VS101D
|
DIS-VS102DC
|
DIS-VS102C
|
DIS-VS104C
|
Video Input
|
1
|
1
|
2
|
2
|
4
|
Audio Input
|
1
|
1
|
2
|
2
|
4
|
Picture Format
|
CIF
|
4-CIF
|
D-CIF
|
4-CIF
|
CIF
|
Resolution
|
352*288
|
704*576
|
512*384
|
704*576
|
352*288
|
Operating System
|
RTOS
(Real-Time Operating System embedded)
|
Video Format
|
PAL /
NTSC
|
Video Compression
|
H.264
|
Audio Compression
|
MP3
|
Frame Rate
|
25fps(PAL)controllable frame rate
|
Bit Rate
|
Video:100Kbps to 4Mbps Audio : 32Kbps
|
Network Transmission
|
LAN,
ADSL, DDN, ISDN, VPN, fiber etc…
|
Supported Protocols
|
TCP/IP,
HTTP, DHCP, FTP(client), PPPOE, DNS,
DDNS(Dynamic DNS), UPnP
|
Web Browser
|
Client
software, IE
|
Recording
|
Remote
client recording
|
Security
|
Multilevel password protection
|
Software Upgrade
|
Software
upgrade via client software
|
PTZ Control
|
Multi-protocol
|
PTZ Port
|
RS485
|
Network Port
|
10/100M
|
Alarm
|
4 input,
2 output
|
Supply Voltage
|
DC12V
|
Consumption
|
7W
|
Operating Temperature
|
-10°C~+50°C
|
Humidity
|
5%~95%,
Non Condensing
|
Dimension
|
164×187.5×44.5mm (L×W×H)
|
Weight
|
0.79Kg
|
|
|
|
|
