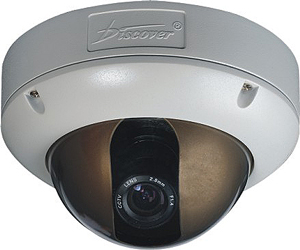

Vandal Proof / Super Wide Dynamic Range Dome Camera

DIS-308CD / DIS-308VCD / DIS-309CD / DIS-309VCD / DIS-309WD

bullet Water-proof, vandal-proof, rugged design
bullet 1/3" Sony Super HAD and Wide Dynamic Double CCD  (DIS-309WD only)
bullet Sony 10 bit A/D DSP optimize image
bullet Wide Dynamic Range 400: 1 (DIS-309WD only)
bullet Frame Integration increase intensity 2~160x (DIS-309WD only)
bullet 8 wide dynamic preset for different backlighting surrounding (DIS-309WD only)
bullet 8 masking zones, horizontal and vertical 180º mirror function (DIS-309WD only)

Specification

Model DIS-308CD DIS-308VCD
DIS-309CD
DIS-309VCD
DIS-309WD
Image Sensor 1/3" Sony Super HAD CCD 1/3" Sony Wide Dynamic Double Speed CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing
Total Pixels (H x V) PAL: 795 x 596  NTSC: 811 x 508
Sync System Internal
Gain 36dB
Lens 2.8~12mm manual iris lens  3.5~8mm auto iris lens 2.8~12mm manual iris lens 3.5~8mm auto iris lens
Min Illumination Color: 0.1 Lux F1.2
Mono: 0.01 Lux F1.2
0.7 Lux F1.6
Frame Integration: 0.07 Fux F1.6
Horizontal Resolution 480 TVL 540 TVL
S/N Ratio > 52dB
Video Output 1.0 Vp~p composite 75ohm
Frame Integration - 2~160x
Privacy Zone Masking - 8 zones set, color adjustable
Mirror - Horizontal and vertical 180° adjustable
Wide Dynamic Range - 400:1
Wide Dynamic Operation - High and low speed shuttter
Double intelligent operation
Day / Night Switch Auto -
Menu Display - English
Operating Temperature -10 ~ 50°C
Power Supply / Consumption DC12V 3.5W / AC24V 5.4W DC12V 4.2W / AC24V 5.8W
Dimension Base Φ 153 x 93 (H) mm
Weight 830g
