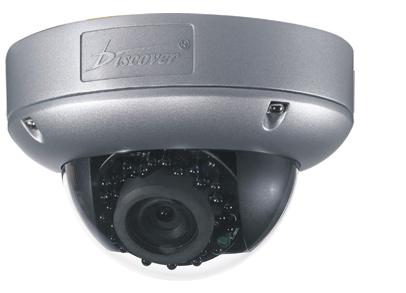

Infra-Red Dome Camera

DIS-306IR-9 / DIS-305IR-9

bullet 1/3" Sony SuperHAD CCD
bullet 540 TVL (DIS-306IR-9 only)
bullet Built-in IR, up to 0 Lux illumination, effective distance 18ml
bullet Auto white balance, color vivid, exquisite function
bullet Lens 4/6/8mm selectable

Specification

Model
DIS-306IR-9
DIS-305IR-9
Image Sensor 1/3" Sony SuperHAD CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing scanning
Total Pixels (H x V) PAL: 795 x 596
NTSC: 811 x 508
Sync System Internal
Min Illumination Color: 0.1 Lux F1.2
Mono: 0.01 Lux F1.2
0 Lux (with IR)
Horizontal Resolution 540 TVL 480 TVL
IR Effective Distance 18m
Gain 36dB
S/N Ratio > 50dB
Video Output 1.0 Vp~p composite 75ohm
Auto White Balance Yes
Color / Mono Switch Yes
BLC Yes
Lens 4/6/8/12mm manual iris lens
Operating Temperature -10 ~ 50°C
Power Supply / Consumption DC12V / AC24V 3.5W
Weight 850g
Dimension Base Φ 153 x 93 (H) mm
