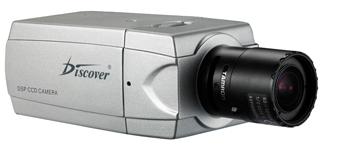

Super Wide Dynamic Range Camera

DIS-539WD / DIS-539WDN

bullet 1/3" Sony Third Generation Wide Dynamic Super HAD CCD
bullet Sony 10bit A/D DSP picture optimization and OSD adjustment control
bullet Wide dynamic range 160x
bullet Super wide dynamic up to 50dB, real time video output 30fps
bullet For different backlight environment, supply 8 modes wide dynamic preset
bullet Frame integration 2~256x
bullet 16 privacy masking zones, horizontal vertical 180° mirror function
bullet Exposure modes: wide dynamic mode, flicker suppress mode, auto iris mode
bullet Intelligent mechanism double filter switch, color mode 540TVL, monochrome mode 600TVL
bullet Double filter control modes: auto/manual/preset time/duplex alarm
bullet Filter definition: in the day purity color, in the night no anamorphic mono image
bullet Lens drive: DC drive/Video drive auto iris lens
bullet Internal/Line lock synchronization auto switch
bullet Special lens mounting design suitable for both C/CS lens and enable easy focal lenght adjustment for high power zoom lens
bullet RS-485 remote control function

Specification

Model
DIS-539WD
DIS-539WDN
Image Sensor 1/3" Sony Third-Generation WD Super-HAD CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing scanning
Total Pixels (H x V) PAL: 795 x 596, NTSC: 811 x 508
Sync System Internal / Power supply
Horizontal Resolution Color: 540TVL, Mono: 600TVL
Minimum Illumination Color: 0.2Lux (F1.2)
0.005Lux (F1,2 DSSx64)
Mono: 0.00005Lux (F1.2, DSSx64)
Color: 0.2Lux (F1.2)
0.005Lux (F1,2 DSSx64)
Mono: 0.00005Lux (F1.2, DSSx64)
IR: 0Lux
IR Wavelength - 700 ~ 1100nm
Wide Dynamic Range 160X
Filter Switch Illumination Range - 1~3 Lux
Low-light Control Method AGC / DSS
S/N Ratio >50dB
Frame Integration 2 ~ 256X
Privacy Zone Masking 16 areas set, color adjustable
Mirror Horizontal and Vertical direction 180° adjustable
Video Output 1.0Vp-p composite output, 75Ω, BNC
Lens Manual / Auto Iris Lens (DC / Video drive)
Lens Mount C/CS mount
Menu Display Yes
Auto Electronic Shutter 1/50 ~ 1/100,000 sec
Wide Dynamic Operation Mode Shutter  1/1,000 ~ 1/100,000 sec. Area backlight compensation auto weighted, manual adjusting function
Power Supply / Consumption DC12V 3.5W / AC24V 5.0W
Operating Temperature -10°C ~ +50°C
Weight 500g
Dimension 143 x 72 x 58mm
