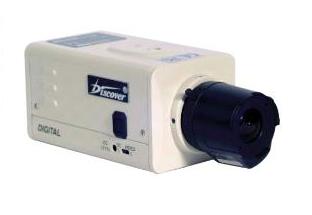

Low Light Color Camera

DIS-529EX / DIS-539EX

bullet 1/2", 1/3" Sony Exview HAD CCD
bullet Horizontal resolution 540TVL, 0.01Lux F1.2
bullet 225 areas auto back light detect function
bullet IR filter feature as optional
bullet Multi white balance mode and electronic shtter selective
bullet S/N ratio > 50dB
bullet Internal, line lock sync auto switch
bullet Lens drive: DC drive/Video drive auto iris lens
bullet Special lens mounting design suitable for both C/CS lens and enable easy focal lenght adjustment for high power zoom lens

Specification

Model
DIS-529EX
DIS-539EX
Image Sensor 1/2" Sony Exview HAD CCD 1/3" Sony Exview HAD CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing scanning
Total Pixels (H x V) PAL: 795 x 596, NTSC: 811 x 508
Sync System Internal / Power supply
Horizontal Resolution Color: 540TVL, Mono: 600TVL
Minimum Illumination

Color: 0.01Lux F1.2, Mono: 0.001Lux F1.2

Gain 30dB
S/N Ratio >50dB
Auto Exposure Mode  Mode1: Auto Electronic Shutter mode: 1/50 ~ 1/100,000 sec
Mode2: Flickerless mode: 1/120 sec
Mode3: Auto Iris mode: 1/50 sec
Mode4: Auto Iris + Electronic Shutter mode: 1/50 ~ 1/100,000 sec
White Balance Mode1: Auto color temperature white balance mode: 2500°K ~ 9500°K
Mode2: Auto white balance mode
Mode3: Preset mode: indoor 3200°K, fluorescence light 4200°K, outdoor 6300°K
Mode4: Manual white balance mode
IR Filter Function Optional
Backlight Compensation 225 zones backlight compensation auto detect function
Video Output 1.0Vp-p composite output, 75Ω, BNC
Lens Manual / Auto Iris Lens (DC / Video drive)
Lens Mount C/CS mount
Power Supply / Consumption DC12V 3.5W / AC24V 5W / AC220~230V
Operating Temperature -10°C ~ +50°C
Weight 316g
Dimension 120 x 56 x 58mm
