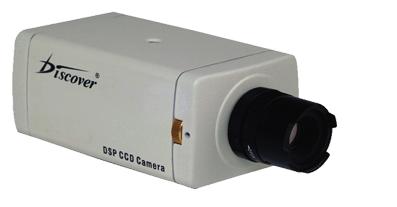

High Resolution Color Camera

DIS-536C / DIS-535C

  • 10bit Sony A/D DSP signal processing, high sensitivity, horizontal resolution up to color 540TV
  • Image sharpeness feature
  • Multiple AE mode, white balance & shutter manual adjustable
  • Ability to filter out strong light beam

Specification

Model
DIS-536C
DIS-535C
Image Sensor 1/3" Sony NC CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing scanning
Total Pixels (H x V) PAL: 795 x 596, NTSC: 811 x 508
Sync System Internal / Power supply
Horizontal Resolution 540TVL 480TVL
Minimum Illumination Color: 0.1Lux F1.2
Mono: 0.01Lux F1.2
Day / Night Switching Auto
Privacy Zone Masking 8 areas set
Gain 36dB
S/N Ratio >50dB
Mirror  Horizontal, vertical 180° adjustable
Video Output 1.0Vp-p composite output, 75Ω, BNC
Lens Manual / Auto Iris Lens (DC / Video drive)
Lens Mount C/CS mount
Menu Display Yes
Auto Exposure Functions Multiple modes selectable
Auto Electronic Shutter Auto / Manual adjustable
Power Supply / Consumption DC12V 3.5W / AC24V 5W
Operating Temperature -10°C ~ +50°C
Humidity 0% RH ~ 85% RH
Weight 360g
Dimension 128.2 x 70.6 x 54mm
