MPEG4 H.264 5.0 Megapixel

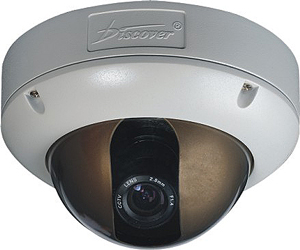

Network IP Camera
DIS-9301IP
DIS-9301IP Megapixel High
Resolution Network Camera incorporating
latest H.264 Main Profile @ Level 4.1
compression algorithms. For the same picture
quality, in comparison with standard MPEG4
bit rates, DIS-9301IP megapixel camera bit rate is 50% lower.
Equipped with Progressive Scan 5-Mega Pixel CMOS, smooth
reproduction of images with moving subjects.
Real time dual streaming of H.264 720P,
recording is compatible with standard
decoder. Built-in WEB Server, supports WEB
browsing and management. For large scale
integration, use DISCOVER Central
Management Software (CMS) DIS-M2000.
PoE
(Power over Ethernet) feature as option.
Easy operation, easy installation, unlimited
possibilities with standard IP
infrastructure!
DIS-9301IP is ideal for
banks, office buildings, shopping malls,
airport, train stations, harbour, schools
and most cctv surveillance applications.
|
MPEG4 H.264 video compression technology
|
|
High Resolution Progressive Scan 1/2.5-Inch
5-Mega Pixel CMOS
|
|
Broadcast picture quality, maximum 720TVL,
minimum illumination 0.8 Lux
|
|
720P(1280 x 720/30fps) real time dual
streaming
|
|
True ISO H.264 Main Profile @ Level 4.1 dual
bit rates
|
|
RJ45 Port 10M/100M
|
|
PoE(IEEE802.3af) PoE (Power over Ethernet
(Optional)
|
|
Supports 720P, D1, VGA, and CIF-resolution
|
|
Supports FTP recording server
|
|
Supports RTSP protocol
|
|
Supports 720P+CIF dual bit rates, browsing
live and recording independently
|
|
Built-in WEB Server, supports WEB format
browsing and management
|
|
Motion-detection and motion trigger
recording
|
|
Supports Digital Watermark, for easy
authentication
|
|
Supports PPPoE, DDNS(Dynamic Domain Name)
|
|
Supports UPnP protocol
|
|
Large scale integration with Central
Management Software (CMS) DIS-M2000
|
Highlight
Megapixel
|
DIS-9301IP Mega Pixel
Color Network Camera with a 5-Mega Pixel CMOS Imager,
smoothly deliver images of moving

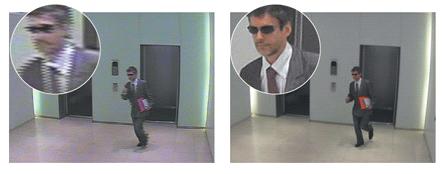

subjects. The DIS-9301IP delivers Crisp Clear High Resolution picture with greater details as compared
with a conventional analog camera.
Progressive Scanning and dual streaming
delivers seamless motion picture as
compared to the conventional interlace
scanning system.
|
Real Time Monitoring
|
DIS-9301IP Mega Pixel
Network Camera enables high resolution
transmission up to 30 fps for real time
live monitoring, with resolution up to 720P(1280x720). As compare to
some low-cost non real-time IP cameras,
user not only can see seamless motion
picture in near HD also will not miss
any detail due to slower picture updates
in the case of non real time IP camera.
Simultaneously output of High Resolution
of 720P and CIF pictures, separately for
real-time recording and live monitoring.
|
True ISO H.264 Main Profile @
Level 4.1
|
DIS-9301IP Mega Pixel
Network Camera uses H.264 Main Profile @
Level 4.1 compression algorithm. For the
same picture quality, in comparison with
standard MPEG4 bit rates, DIS-9301IP Mega Pixel camera bit rate is 50% lower. Standard
ISO H.264 recording is compatible with
most decoder, flexibility and
compatibility. Supports various
resolutions both for recording and
transmission: 720P(1280x720), Full
D1(720x576), VGA(640x480) and
CIF(352x288).
|
H.264 Dual Streaming
|
DIS-9301IP Mega Pixel
Network Camera delivers simultaneously 1
channel of 30 fps with 720P(1280x720)
and 1 channel of 25 fps with
CIF(352x288) resolution. The High
Resolution of 720P format for recording
and the other CIF format for faster
transmission in the network environment.
This is the Dual Streaming function of
the DIS-9301IP, with
individual settings for picture quality,
bit rates, frame rates etc..
|
PoE
|
Utilizes IEEE802.3af PoE (Power over
Ethernet), power supply for the camera,
digital picture, alarm signal and
RS485P/T/Z controls all-in-one Ethernet
cable! Easy installation as well as easy
for maintenance, therefore reducing
cabling and installation costs. Needs to
choose and match the PoE switchboard and
the power supply module.
|
Easy IP Set-up
|
DIS-9301IP Mega Pixel
Network Camera supports UPnP protocol,
which provides cameras auto detect
function in the operating system with
specify software, turns on and auto
linking network camera equipments. We
provide "Admin Tool" for easy
configuration, and reduce debugging work
load, also saves the installation and
the maintenance cost.
|
Flexible Alarm Handling
|
DIS-9301IP Mega Pixel
Network Camera supports video loss
alarm, lens blocked alarm, sensitivity
adjustable motion detection alarm, also
supports various external alarm sensors
or command alarms trigger from other
equipments on the network.Various
flexible alarm handlings including high
resolution captures in SD memory card or
FTP server forwarding features or Email
notification upon alarm triggers. In
large scale integration, alarms
automatically transmit to DISCOVER
Central Management Software (DIS-M2000).
Alarm output can be connected to
activate lights, buzzers, sirens or
other external signaling devices.
Independent user settings for motion
detection and alarm sensor inputs , pre-
and post-alarm recordings.
|
User Management
|
DIS-9301IP Mega Pixel
Network Camera provides multi levels
user authorization and permission.
Different user with different authorized
operation enabled or disabled. A truly
purpose built security product with
multi passwords authorization.
|
Privacy Zone
|
DIS-9301IP Mega Pixel
Network Camera allows Privacy Zone
Masking. Prevent display of sensitive
areas or zones for privacy reasons.
|
OSD and Water-Mark
|
DIS-9301IP Mega Pixel
Network Camera built-in with date time
generator OSD function. Display position
and grey level is user programmable.
Supports Digital WATER-MARK for
authentication of recorded pictures.
|
View and Control
|
DIS-9301IP Mega Pixel
Network Camera comes with YPbPr High
Resolution analog output, user can
connect to any analog device or other
cctv equipments.Built-in Web
Server,supports WEB format browsing and
management. DIS-9301IP complete conformity with Central
Management Software, DIS-M2000, which
meet the demand of
large-and-middle-scale centralized
control of CCTV project.
|
RTSP/RTMP Protocol
|
DIS-9301IP Mega Pixel
Network Camera comes with selectable
RTSP protocol. RTSP (Real Time Streaming
Protocol) able to support more
transmission protocol when necessary.
|
Specification
|
DIS-9301IP
|
Camera and Optics
|
CCD Imager
|
1/2.5” Progressive Scan 5-Mega Pixel
CMOS
|
Effective Pixels(HxV)
|
2592H x 1944V
|
Scanning Method
|
Progressive Scan
|
Lens
|
½"
Megapixel 4/6/8/12mm Manual iris lens or
9-12mm Megapixel Auto iris lens
|
White Balance
|
Auto
|
AGC
|
Auto
|
Aperture Control
|
Auto
|
S/N Ratio
|
>50db
|
Video
|
Video Compression
|
Standard H.264 Main Profile @ Level 4.1
|
Maximum Resolution
|
1280x720P(30fps) + 352x288(30fps) dual
streaming
|
Resolution
|
PAL: 720P/25P(1280 x 720), D1(720 x
576), VGA(640 x 480), CIF(352 x 288)
NTSC: 720P/30P(1280 x 720), D1(720 x
480), VGA(640 x 480), CIF(320 x 240)
|
In/Out Connection
|
Ethernet Port
|
1
x RJ45,10Base-T/100Base-TX, supports PoE
(IEEE802.3af)
|
Functions
|
Software
|
IE, Client’s , CMS (optional)
|
Recording
|
Real time records, Alarm trigger records
|
Alarm Sensor
|
Motion detection, Video loss, Blocked
lens, Contact trigger
|
Storage
|
Remote network storage
|
Network
|
Protocol
|
TCP/IP, HTTP, SNMP, UPnP, ARP, ICMP,
DHCP, FTP, UDP, DNS, DDNS, SMTP, NTP,
Static IP, RTSP protocol)
|
General Specifications
|
Power Input
|
DC
12V: 300MA/Power over Ethernet PoE
IEEE802.3af (selectable)
|
Consumption
|
3.6W
|
Operating Temperature
|
-10°C ~ +50°C
|
Humidity
|
<90% (non-condensing)
|
Dimension
|
Base diameter 153.5mm, Height 92.5mm
|
Weight
|
Approx 830g
|
|
|
|
|
