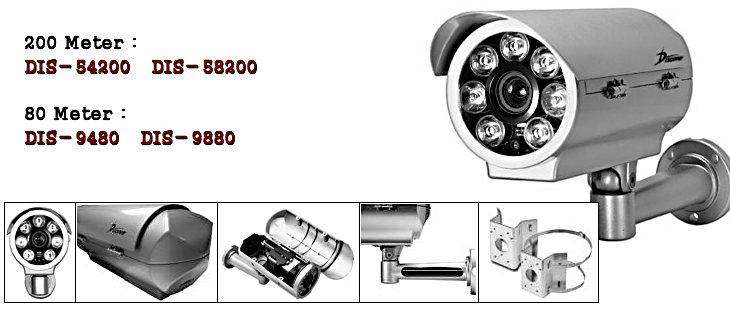

Infrared Illuminator Housing
DIS-54200 / DIS-58200 / DIS-9480 / DIS-9880

DIS-54200 / DIS-58200 DIS-9480 / DIS-9880
bullet Adopts New Hi-Power IR LED with 1.5W output power.
bullet Radiant distance up to 200M.
bullet IP66 rated aluminum housing.
bullet Cable managed housing & bracket.
bullet Built-in auto activated heater & blower.
bullet Aluminum PCB for better heat dissipation.
bullet Can transmit D/N output signal to trigger the D/N camera.
bullet Adjustable IR LED activation level to meet
various applications.
bullet Special layout of different angle LED to optimize radiant coverage.
bullet Adopts New Hi-Power IR LED with 1.5W output power.
bullet Radiant distance up to 80M.
bullet By using 940nm wavelength of IR LED, camera will not easy to be discovered at night.
bullet IP66 rated aluminum housing.
bullet Cable managed housing & bracket.
bullet Built-in auto activated heater & blower.
bullet Aluminum PCB for better heat dissipation.
bullet Can transmit D/N output signal to trigger the D/N camera.
bullet Adjustable IR LED activation level to meet
various applications.
bullet Special layout of different angle LED to optimize radiant coverage.

Specification


  DIS-54200 DIS-58200 DIS-9480 DIS-9880
Power Input Voltage AC24V(±10%) AC90~260V AC24V(±10%) AC90~260V
Radiant Distance 200M 80M
Windows Φ110 Heat Resistant Glass
Glass Thickness 3mm
Infrared LED Wavelength 850nm 940nm
Infrared LED Angle 6°+30°
Infrared LED Quantity 5 Units (6°) + 2 Units (30°)
Infrared LED Power On Sensor Auto Control, Adjustable Control Point
Blower Control On : 35°C, Off : 25°C
Heater Control On : 15°C, Off : 25°C
Suitable Camera and Lens Max 200mm Length
IR Rating IP 66
Mounting Bottom
Construction Aluminum
Power Consumption 32W
Operating Temperature -20°C ~ +60°C
Dimension Housing : Φ134x318mm(L), Bracket : 211.5mm(L)
Weight 3.5kg
