Single / Multi-port Ethernet
Fiber Media Converter
DIS-1100 / DIS-1200 / DIS-1400 / DIS-1600 / DIS-GAGE
/ DIS-NMS

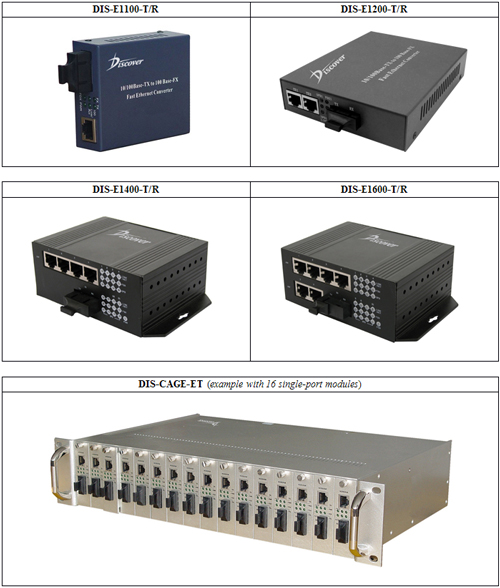

Discover's latest multi-port Ethernet Fiber
Media converter are available in 1-port,
2-port, 4-port and 6-port model. DIS-1100,
DIS-1200, DIS-1400 and DIS-1600 series
10/100Mbps adaptive switch built-in, to
convert electrical signal of 10Base-T and/or
100Base-TX twisted pairs with optical signal
of 100Base-TFX. It could extend traditional
10/100M fast Ethernet to a distance of up to
120km through a single optical fiber link.
This product supports two different types of
network connection mediums: 10/100Base-TX
and 100Base-FX, and fulfil data transmission
between the two networks with switching
technology and store-and-forward technology.
This product is fully compatible with
Discover's range of network CCTV products,
group users and intelligent community
broadband access.
The
DIS-CAGE-ET cage assembly is a durable and
compact enclosure specially designed for
Ethernet Fiber Media Converter. It is
built-in with power supply and optional
redundant power supply and optional network
management. The DIS-CAGE-ET capacity for any
combination of single/multi-port modules.
Easy installation. Filler panels available
for unused positions.
Support also SNMP based intelligent network
management, for easy monitor and
configuration both locally and remotely.
Features
|
Auto-sensing 10/100Mbps, facilitating
network upgrade.
|
|
Built-in efficient switching core to
enable flow control and reduce broadcast
packets.
|
|
Support Full Duplex or Half Duplex mode,
auto MDI/MDI-X.
|
|
Support automatic UTP polarity
correction.
|
|
Support up to 1552 byte for
store-and-forward mode packet size.
|
|
Support QoS (Quality of Service) and
guarantee for VOIP/IPTV transmission.
|
|
Support SNMP protocol. (for certain
model only)
|
|
Low power consumption: low heat, stable
and reliable for lifetime operation.
|
|
Options available: SM in dual fiber, MM
in dual fiber and SM in single fiber.
|

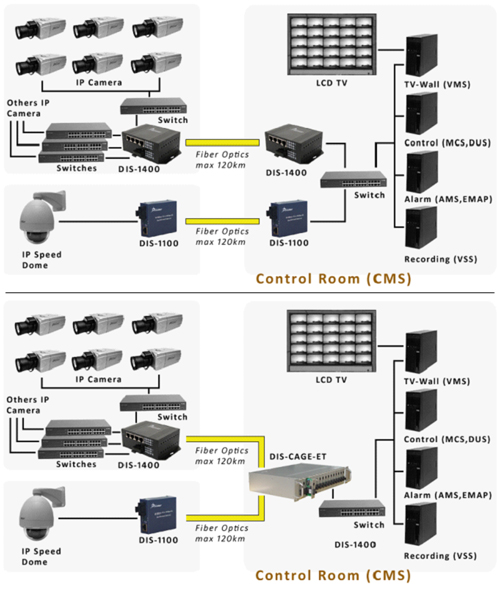

Sample Network Design
Ordering Information
Model
|
Fiber
Port
|
Ethernet Port
|
SNMP
Protocol
|
Unit
|
Distance
|
DIS-E110020-T/R
|
1
|
1
|
-
|
1 pair
|
20km
|
DIS-E120020-T/R
|
1
|
2
|
-
|
1 pair
|
20km
|
DIS-E140020-T/R
|
1
|
4
|
-
|
1 pair
|
20km
|
DIS-E160020-T/R
|
1
|
6
|
-
|
1 pair
|
20km
|
DIS-E110080-T/R
|
1
|
1
|
-
|
1 pair
|
80km
|
DIS-E120080-T/R
|
1
|
2
|
-
|
1 pair
|
80km
|
DIS-E140080-T/R
|
1
|
4
|
-
|
1 pair
|
80km
|
DIS-E160080-T/R
|
1
|
6
|
-
|
1 pair
|
80km
|
DIS-E110120-T/R
|
1
|
1
|
-
|
1 pair
|
120km
|
DIS-E120120-T/R
|
1
|
2
|
-
|
1 pair
|
120km
|
DIS-E140120-T/R
|
1
|
4
|
-
|
1 pair
|
120km
|
DIS-E160120-T/R
|
1
|
6
|
-
|
1 pair
|
120km
|
DIS-E11N020-T/R
|
1
|
1
|
Yes
|
1 pair
|
20km
|
DIS-E11N080-T/R
|
1
|
1
|
Yes
|
1 pair
|
80km
|
DIS-E11N120-T/R
|
1
|
1
|
Yes
|
1 pair
|
120km
|
Model
|
Description
|
Unit
|
DIS-GAGE-ET14
|
14 slots, dual power supply cage
|
1 box
|
DIS-GAGE-ET16
|
16 slots, dual power supply cage
|
1 box
|
DIS-GAGE-NM
|
16 slots, dual power supply cage
with SNMP
|
1 box
|
DIS-NMS
|
SNMP Management Server
|
Software
|
Specification
Model
|
Single / Multi-port
Ethernet Fiber Media Converter
|
Access mode
|
10/100Mbps
|
Protocols
|
IEEE802.3 10Base-T Ethernet,
IEEE802.3u, 100Base-TX/FX Fast
Ethernet, IEEE802.3x Flow
control, IEEE802.1q VLAN,
IEEE802.1p QoS, IEEE802.1d,
Spanning Tree
|
Wavelength
|
850nm / 1310nm / 1550nm
|
Maximum distance
|
Multi-mode (MM): 2km
Single-mode (SM): 120km
|
UTP cable
|
Category-5
|
Port
|
RJ45 port: STU / UTP twisted
pair
Multi-mode (MM): SC / ST
(50/125µm
Single-mode (SM): SC / FC
(9/125µm)
|
Conversion
|
Media conversion,
store-and-forward
|
MAC address table
|
1K
|
Buffer
|
1Mbit
|
Flow control
|
Full duplex: flow control
Half duplex: back pressure
|
Delay
|
9.6µs
|
MTBF
|
100,000 hours
|
LED indicators
|
POWER, FX LINK/ACT
FDX (FX Full Duplex), FX 100
(Fiber 100M transmission rate)
TP1/2 LINK/ACT (1/2 port twisted
pair link action)
TP1/2 100 (1/2 port twisted pair
100M transmission rate)
|
Power supply
|
DC5V 1A external (excluding DIS-CAGE-ET)
|
Operating temperature
|
-10 ~ +55°C
|
Operating humidity
|
5% ~ 90%
|
|
|
|
|
