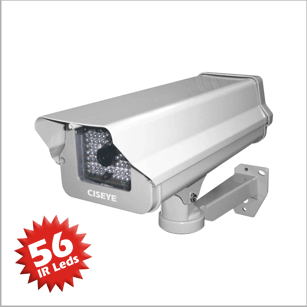

Products Digital Video System : CISEYE IP Camera |
|
|
|
|
|
|
MPEG4 Video
Compression |
|
|
|
Built-in Web
Server |
|
|
|
Optimal
Synchronization
of Video &
Audio |
|
|
|
Intelligent
Motion Detection |
|
|
|
Pre- and
Post-Alarm
Snapshots |
|
|
|
Extended I/O for
Sensor and Alarm |
|
|
|
Adjustable
Network
Bandwidth |
|
|
|
User Management |
|
|
|
Remote Record
and Snapshot
Control on Web
Page |
|
|
|
Support Auto
Iris Lens |
|
|
|
35M Infra Red
Night Vision |
|
|
|
SPECIAL FUNCTIONS |
|
|
• |
|
Picture Elements HxV |
|
|
NTSC/EIA: 510*492; PAL/CCIR: 500*582 (Medium) |
|
• |
|
Picture Elements HxV |
|
|
NTSC/EIA: 768*494; PAL/CCIR: 753*582 (High) |
|
• |
|
H. Sync. Frequency |
|
|
NTSC: 15.734 KHz; PAL: 15.625 KHz |
|
• |
|
V. Sync. Frequency |
|
|
NTSC: 59.95 Hz; PAL: 50Hz |
|
• |
|
Electronic Shutter |
|
|
Auto, Rang: 1/50(1/60) ~ 1/100,000 sec. |
|
• |
|
Synchronization |
|
|
Internal |
|
• |
|
White Balance |
|
|
Auto white balance |
|
• |
|
Gain Control |
|
|
Auto |
|
• |
|
Led |
|
|
ø5 x 56 pcs |
|
|
|
• |
|
Gamma |
|
|
0.45 |
|
• |
|
S/N Ratio |
|
|
More than 48 dB (AGC off) |
|
• |
|
Video Output |
|
|
1 Vp-p, 75 Ohms |
|
• |
|
Power Supply |
|
|
DC 12V (+/- 10%) |
|
• |
|
Image Device |
|
|
1/3" Sony Super HAD CCD |
|
• |
|
Lens (mm) |
|
|
3.6/6/8/12 |
|
• |
|
Night Vision |
|
|
35M |
|
• |
|
Min. Illumination |
|
|
0.1 Lux (0 Lux Led on) |
|
• |
|
Resolution |
|
|
480 (TV Line) |
|
|
|
|
|
|
|
|
System |
• |
|
CPU: Trimedia PNX1300 |
• |
|
RAM: 8MB SDRAM |
• |
|
ROM: 2MB FLASH ROM |
|
|
|
General I/O |
• |
|
1 sensor input max. 12VDC 50mA |
• |
|
1 relay output max. 24VDC 1A/125VAC 0.5A |
|
|
|
|
|
|
|
|
|
|
Audio |
• |
|
24kbps |
• |
|
Supporting audio mute |
|
|
|
LED Indicators |
• |
|
Dual colour system |
• |
|
Status indicator |
|
|
|
|
|
|
|
Operating Environment |
• |
|
Temperature: -10 ~ +60°C |
• |
|
Storage: -20 ~ +70°C |
• |
|
Humidity: 95% RH |
|
|
|
Dimension |
• |
|
Diameter: 105mm |
• |
|
Length: 137mm |
• |
|
Height: 370mm |
|
|
|
|
|
|
|
|
Free Bundled 16CH Software |
• |
|
Remote configuration and control sixteen devices |
• |
|
Event-triggered, scheduled, manual recording |
• |
|
Instant search with preview windows |
• |
|
Fast/slow forward replay and pause |
• |
|
Hard disk quota warning |
• |
|
Scheduled record |
• |
|
AVI format export |
|
|
|
Viewing System Requirement |
• |
|
Operating system: |
|
|
Microsoft Windows 2000, 2003, XP |
• |
|
Processor: Pentium IV or above |
• |
|
RAM: 512MB or above |
• |
|
Graphic Memory: 128MB or above |
• |
|
Browser: Internet Explorer 5.X or above |
|
|
|
|
|
|
|
Power |
• |
|
Consumption: 50mA (Led off) / 580mA (Led on) |
• |
|
Input: 100-240VAC, 50/60Hz, 0.4A |
• |
|
Output: 12VDC, 1.5A |
|
|
|
Security |
• |
|
Administrator and user group protected |
• |
|
Password authentication |
|
|
|
|
|
|
|

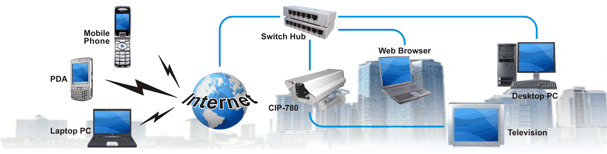

Networking |
• |
|
Protocol |
|
|
|
TCP/IP, HTTP, SMTP, FTP, Telnet, NTO, DNS, DDNS, UPnP and DHCP |
|
• |
|
Ethernet |
|
|
|
10 baseT or 100 baseT Fast Ethernet auto negotiation |
|
|
|
|
Alarm Features |
• |
|
Motion detection with percentage and sensitivity |
• |
|
3 colour images per camera for pre/post alarm |
• |
|
Automatic transfer of stored images via email or FTP |
|
|
|
|
|
|
|
Video |
• |
|
Algorithm supported |
|
|
|
MPEG4 (short header mode) |
|
• |
|
Video input |
|
|
|
BNC composite video input with NTSC/PAL auto-sensing |
|
• |
|
Features |
|
|
|
Adjustable image size, quality and bit-rate 3 monitor detection windows |
|
|
Time stamp and text overlay |
|
|
|
|
• |
|
Resolution |
|
|
|
NTSC: |
|
|
Up to 30 frames at 176 x 120 |
|
|
Up to 30 frames at 352 x 240 |
|
|
Up to 30 frames at 704 x 480 |
|
|
|
PAL: |
|
|
Up to 25 frames at 176 x 120 |
|
|
Up to 25 frames at 352 x 288 |
|
|
Up to 10 frames at 704 x 480 |
|
|
|
|
|
|
All
specifications
are
subject
to
change
without
notice.
All
other
trademarks
are
owned
by
their
respective
companies. |
|
|
|
|
|
|
|
