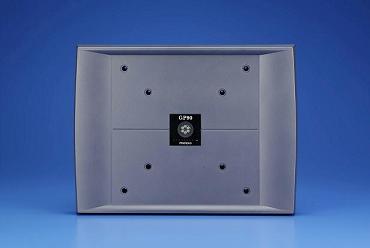

GP90 Very Long Range
Proximity Reader
เครื่องอ่านบัตรแบบ RFID ระยะการอ่านบัตร 90 cm. |
|
| |
|
|
| Product Name |
: |
Advanced Long Range
Proximity Reader |
| |
|
|
| Model No. |
: |
GP90A |
| |
|
|
| Introduction |
: |
GP90A is an
extended range proximity reader featuring
compact dimensions and read range of up to 90
cm. The unit will run an excellent power supply
and making it particularly suited to access
control, car parking and through-wall reading
applications. The same basic unit can be
configured to output most of the common
interface formats, including Wiegand, Mag-stripe
and RS-232 serial ASCII and RS485 output, making
it easy to upgrade the existing
installations.
|
| |
|
|
| Features |
: |
l Contactless
reading.
l Reading distance up to 90
cm
l Externally programmable
interface
l Potted for environmental
protection
l Weather
resistant
l User convenience
l Easy to install
l Unique design
l Relay
control
l Firmware download
model
l Status LED
display
l Tuning LED
display |
| |
|
|
| Specifications |
: |
Electrical
Power Requirements:Power supply input
voltage: AC120/ 60Hz or 230V/50Hz
Output
voltage: DC 18~19.2V / 1.5A (Max)
Interface:
Wiegand : 26 bits
MSR ABA Track2 : ISO,
ABA TK2 emulation
RS232 : Serial
ASCII, 9600, N, 8, 1 ( Relay control
)
RS485 or Special Customized
Specification
Interface Cable -
90 cm
Read Range : Up to 90 cm at 18~19Vdc
with ISO card in ideal conditions.
Frequency
: 125KHz, ASK
Format : 64 bits, Manchester
coding
Transponder : Read only
Chip type
: EM H4001 / H4002 compatible
ID code : 10
digits in Hex ; 125KHz, ASK ; 64 bits ,
Manchester coding
Rate timing : MOD 64 (64
clock per bit)
Audio / Visual indication :
Internal LED and Buzzer
Mechanical
Dimensions: 420 (L) x 320 (W) x 45(H) mm
Housing material:
ABS
Environmental
Operating
temperature Range: -10 to 60 Deg C
Operating
relative Humidity: 10 ~ 90%
Note: The Specification is subject
to change without notice. |
| |
|
|
| Application |
: |
Access Controls
Car Parking
Systems
Through-wall Reading Application
Personal Identification
Any Long Range
reading Applications
Hand Free
Applications |
| |
|
|
| Available versions |
: |
Order
information:
GP90A-00 without power
supply
GP90A-00E with PS90A-00E AC 230V input power
supply
GP90A-00U with PS90A-00U AC 120V input power
supply
|
| |
|
|
|
|
|
