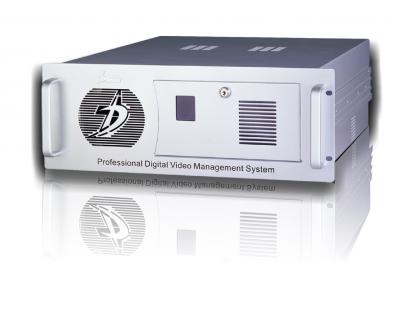

Digital Video Management System
PC-Based System

It's a purpose-built One-Box Solution for total security and video management system. Easy integration with other security
systems allows single platform control and management for hundreds or thousands of cameras, alarm sensors, control
systems on one network. Open architecture offers unlimited expand ability for today and for the future!

Intelligent Modules 3rd Party Integration
bullet Motion detection
bullet Time schedules
bullet Alarm I/O
bullet Record / Archive
bullet Transmission / Playback
bullet E-map
bullet P/T/Z control
bullet Intrusion detection
bullet Access control
bullet Building management
bullet Fire alarm
Customized Modules Remote Capability
bullet Biometric recognition
bullet License plate recognition
bullet Asset tracking
bullet POS / ATM integration
bullet Baggage identification
bullet Object counting / density analysis
bullet Traffic monitoring
bullet Central station
bullet Central backup
bullet Search query engine
bullet Monitoring and playback
bullet Control and manage
bullet Web browser
Wireless Remote
bullet PDA
bullet Mobile phone
bullet Alarm report center (optional)
bullet SMS, email or FTP
bullet Microwave link
bullet Alarm I/O box
bullet Telemetry receiver
bullet Microphone
bullet Video distribution amplifier
bullet Single MKM operation *(mouse, keyboard, monitor)
bullet Multiple monitors

Video Input Up to 64
Audio Input Up to 64
Recording Resolution
704x576 (4CIF)
528x384 (DCIF)
704x288 (2CIF)
352X288 (CIF)
176x144 (QCIF)
704x480 (4CIF)
528x320 (DCIF)
704x240 (2CIF)
352x240 (CIF)
176x120 (QCIF)
Frame Rate 25 fps 30 fps
Video Compression MPEG-4 Part 10 H.264
Bit Rate 32~1,000kbps (CIF), 70~4,000kbps (4CIF)
Alarm Input Up to 64
Alarm Output Up to 32
Operating System Windows 2000/XP
Internal Storage Up to 8 hard disk
Backup Storage CD-RW, DVD-RW, removable disk
Network 10/100 Based-T Ethernet
P/T/Z Control Multi-protocol, RS-232/RS-422/RS-485
Dimension L525 x W425 x H177 mm (4U rack)
Weight Approximate 25kg without hard disk
Warranty Standard 1 year, extended warranty as optional
