DIS-M2000 Central Management Software (CMS)
DIS-M2000 Central Management Software (CMS) is an enterprise-class solution for all DISCOVER's range of DVMS (both PC-based and Embedded DVMS) and network CCTV products.

DIS-M2000 CMS is suitable for today's most demanding CCTV surveillance and management solution. Built on open platform architecture with unlimited flexibility and expandability. Customized solution also available for integration with Non-DISCOVER CCTV products.

The DIS-M2000 CMS provides a single platform for management and control of all DISCOVER CCTV products, both analogue and IP ranging from few cameras to thousand of cameras, from few locations nationwide to hundred or thousand of worldwide locations. Users can control and manage any camera or device in the entire network, receive an alarm, acknowledge an alarm, view a camera or a group of cameras, playback of recorded images of selected camera, control a PTZ camera, E-mapping, and even configure and setup of all functions that can be carried out at the local site, can now be performed using the CMS, without any distance limitation.

DIS-M2000 uses Modular Software Design, users can easily integrate into their projects.

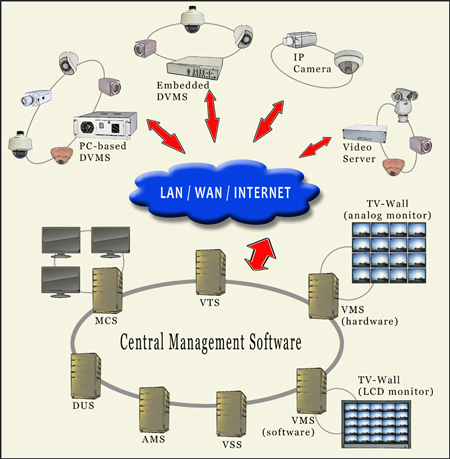

Modular Software Design

Main software modules includes:

bullet DUS - Directory & Users Management Server
bullet MCS - Management & Control Server
bullet AMS - Alarm Management / E-Map Server
bullet VSS - Video Storage Server
bullet VMS - Virtual Matrix Server
bullet VTS - Video / Protocol Transmission Server

Module Description
DUS Directory & User Management Server (Mandatory)
  1. System status display, network connection status, connected DVMS or devices status info.Remote configure, setup and management of DVMS, Video Server and IP cameras.History and users log data.Time synchronization.
  2. Audio communication.
MCS Management & Control Server (Mandatory)
  1. Setup groups, grouping of cameras and site list management.Users rights and permission.
  2. History and users log data.
AMS  Alarm Management / E-MAP Server (Optional)
  1. Alarm control panel information and management.Real-time alarm response and acknowledgement.E-Map setup and maintenance.Alarm pop-up Video verification.Multiple alarm management and alarm info transmission.
  2. Other alarm info: video loss, lens blocked, motion detection, HDD failure, network failure etc..
VSS  Video Storage Server (Optional)
  1. Recording software module.
  2. Live video recording, backup existing video, video management for all DVMS (both PC-basedand Embedded) and Network CCTV products.
VMS Virtual Matrix Server (Optional)
  1. Simulates hardware matrix systems functionality, display any camera on any monitor over the network.Simple and intuitive GUI to control the virtual matrix.Dual stream coding: Enables smooth video streaming.Alarm pop-up Video verification.Control PTZ cameras, Speed domes and Integrated positioning Systems. Alarm triggered sequential switching.
  2. Decoder to analog video (both hardware PCI card or Software-based) for video wall.
VTS  Video / Protocol Transmission Server (Optional)
  1. Live viewing: real-time live video streaming.PTZ control transmission: for speed domes, PTZ cameras and Integrated Positioning Systems.Alarm info transmission: real-time alarm information on the network.Transmission of recorder files.Control PTZ cameras, Speed domes and Integrated positioning Systems.
  2. Auto bandwidth control.

CMS Features
bullet Control and management all DISCOVER PC-Based/Embedded DVMS, Video Server and IP Camera.
bullet ควบคุมและบริหารจัดการอุปกรณ์ภาพและเสียงในระบบทั้งหมด (เครื่องบันทึกภาพแบบ PC Based และ Non-PC Based, กล้องโทรทัศน์แบบเครือข่ายไอพี, ตัวแปลงสัญญาณภาพแบบเครือข่ายไอพี, ตัวแปลงสัญญาณภาพเครือข่ายไอพีแบบมีฮาร์ดดิสก์บันทึกภาพในตัว

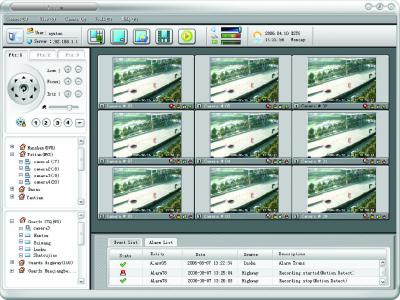

bullet User friendly intuitive GUI, suitable for 16:9 wide screen monitors with clear display areas, easy to use palette of buttons for operation and setup the system. Multi-layers, multi panels, freely configurable display panels, display or hidden selectable, manual or auto arrange, display screen of flexible size.
bullet ใช้งานง่ายด้วยหน้าจอกราฟิกที่เข้าใจง่ายมีปุ่มเลือกการแสดงผลที่หลากหลายและเหมาะกับการแสดงผลภาพบนจอภาพกว้างแบบ 16:9 ได้คมชัด
bullet Remote real time view of DVMS status and operation.
bullet ต่อเชื่อมอุปกรณ์ต่างๆ ในระบบเพื่อตรวจสอบสถานะและการทำงานทั้งหมดแบบ Real Time
bullet Remote control of PTZ, matrix, speed domes etc..
bullet เชื่อมต่อควบคุมการทำงานกล้องแบบหมุนส่ายขยายภาพผ่านเครือข่ายคอมพิวเตอร์ได้
bullet Auto time synchronization.
bullet Remote recording management.
bullet Remote recording search and playback, quick filter for date/time of any camera for playback with a few clicks.
bullet Log files databases and management.
bullet Receiving alarm with corresponding alarm camera pop-up.
bullet Remote alarm activation with corresponding E-map.
bullet Alarm relay and transfer.
bullet Multiple E-maps management.
bullet IP audio communication.
bullet Site list design to list all of know network sites areas showing connected cameras, devices, microphone, alarms etc.. DVMS or cameras configuration can be done via CMS or remote client.
bullet Wizard dialog design easy to use intuitive GUI.
bullet Logical grouping and site lists display of both local and remote sites in the entire network. Easy view, playback, receive alarm, acknowledge alarm, setup and configure, all on one single platform! Support 1/4/6/8/9/10/16/25/36 screen display format, real-time video and audio communication, sequencing of camera or camera groups. Optional video wall display. Multiple monitors viewing for realistic camera location display on the E-map monitor and viewing of video on the other monitor.

Model & Licensing Description & Specification

Notes: One-time Licensing Fee! No recurring per-camera licensing fee!


Model Modules Licensing Description
DIS-M2000 Management & Control Server (MCS)
Directory & User Management Server (DUS)
Alarm Management & E-map Server (AMS)
Log Server (LOG)
  		Basic license for control and manage up to 100 channels of DVMS video ( PC-based/Embedded DVMS or IP camera /Video Server). Above 100 channel, additional licensing cost applies. Software features includes remote configuration, quad display, PTZ controls, multi-level passwords, real-time alarm info, audio communication etc..
DIS-M2000H Virtual Matrix Server (VMS) Basic license allows virtual matrix switching, up to 16 video output. For more than 16 video output, each additional video output license required. 2 types of video decoder available:
1. Software-based: each PC supports up to 8 video output only. For more than 8 video output, additional PC and license is required.
2. Hardware-based: use PCI card for hardware matrix switching. Each VM PCI card supports 4 channels and maximum 4 cards are allowed in 1 server.

DIS-M2000R Video Storage Server (VSS)
  		This software required for recording purposes. 1 VSS license for 1 server.
DIS-M2000L Video/Protocol Transmission Server (VTS) For simultaneous access of more than 5 users log-on from client's software or same video output log-on by 5 users at the same time.
