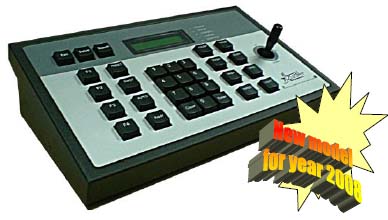

Model: DIS-K5588A
Intelligence PTZ Controller



Built-in RS-485 control, single keyboard can control up to 255 PTZ devicesNew compact design.
New add-on functional keys to enhance the control flexibility.
Maximize the flexibility, multiple protocol supported. Each PTZ devices can be
configured with individual protocol and baud rate.
Preset position and pattern control.
Auto / random / frame scanning mode.
Full programmable preset tour.
Up to 16 keyboards with daisy-chain connection allowed.
Available with master & slave control mode.
Up to 64 monitors control.
Firmware upgradeable through PC via RS485 connection.
Built-in protocol 12
Daisy-chain keyboard 16
Display type LCD

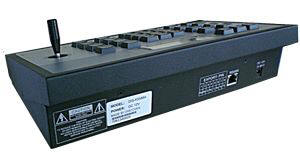

Communication method RS 485 (RJ45 socket)
Baud rate 1200bps ~ 19200bps
Working temperature -10°~ 55°C
Working humidity < 90% RH (non-frosting)
Power supply DC12V±10% / 50Hz
Dimension (L*W*H) 300 x 180 x 90 mm
Weight 2.6Kg
