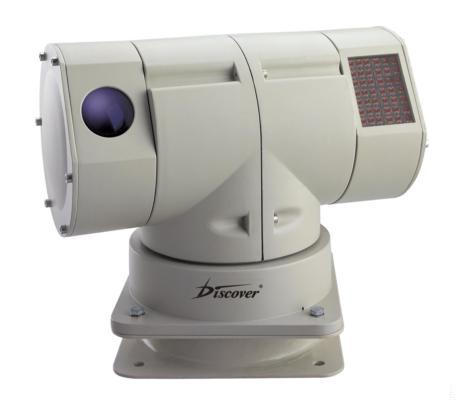

DIS-SP9000 Series Mobile Speed Dome


bullet Patented design.
bullet IR illuminator up to 80M, see in total darkness.
bullet IP 66 protection, all weather All day vehicle-mounted intelligent speed dome.
bullet Rugged construction, anti-Dust, anti-corrosion.
bullet High shock resistant suitable for any vehicle surveillance.
bullet 360° continuous panning 180° tilt, no blind spot.
bullet 6 cruising tracks 128 preset positions.
bullet Vehicle voltage supply DC10.5V~DC18V.

Specification

Model DIS-SP9023B DIS-SP9030B DIS-SP9035B
Camera / Optic
Image Sensor SONY 1/4" Exview HAD CCD
Active Pixels PAL 752H×582V NTSC 768Hx494V
Synchronization Internal/External sync
Video VBS 1.0Vp-p/75Ω
White Balance Auto / Manual
Scanning System  15.625KHz(H)  50Hz(V)
Hor.Resolution 540TVL
S/N Ratio >50dB
Electronic Shutter 1/1~1/10,000s 1/1~1/10,000s 1/50~1/10,000s
Min.Illumination 0.01 Lux
Lens f=3.6~82.8mm f=3.4~102mm f=3.4~119mm
Zoom Ratio Total 216X
Optical 18X
Digital 12X
Total 312X
Optical 26X
Digital 12X
Total 432X
Optical 36X
Digital 12X
Iris & Focus Auto / Manual
Day/Night Switch Yes
Privacy Yes
WDR Yes
Image Stabilizer No Yes Yes
Mechanical
Pan Preset Speed  100°/S
Tilt Preset Speed 60°/S
Pan Speed 0°~80°/S
Tilt Speed 0°~40°/S
Pan Angle 360°continuous
Tilt Angle +90°~-90°
Preset/Cruise 128 preset position,6 Cruising tracks
Controls RS485, multi-protocol, baud 2400Bps, 19200Bps
Operating Temperature -35°C~+55°C
Humidity 90%
Protection Class IP66
Supply DC10.5V~DC18V (3.5A vehicle);AC24V (2.5A)
Vibration ≥4G
Weight 6kg
