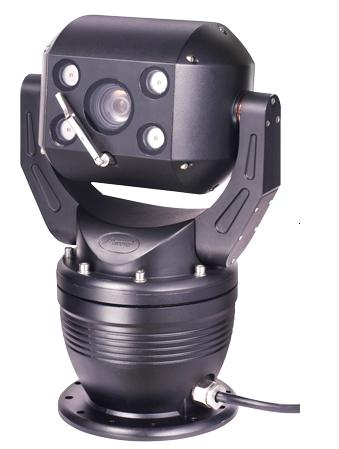

Robot IR Speed Dome
DIS-SH8023 / DIS-SH8030 / DIS-SH8035 / DIS-SH8037
 |
RoboDome construction
5mm-15mm thick aluminium alloy material,
rugged design, intelligent high speed PTZ
Camera.
|
|
Infra-red Laser support
distance of 250m.
|
|
Anti-Vibration.
|
|
Anti-Vandal.
|
|
Anti-Corrosion.
|
|
Anti-Dust.
|
|
Anti-Wind.
|
|
5mm thick Optical
Tempered Glass window aerodynamic design
prevent breaking.
|
|
Comply to IP66 Protection
Class.
|
|
Pan continuous 360º, Tilt
135º.
|
|
Suitable for corrosive
environment, coastal installation, vehicles,
boats, small vessels, military trucks,
border etc…
|
Specification
|
Model
|
DIS-SH8023
|
DIS-SH8030
|
DIS-SH8035
|
DIS-SH8037
|
|
Camera Specification
|
|
|
1/4" SONY Super CCD
|
1/4" Ex-View CCD
|
|
Scanning System
|
1:1 Progressive Scan
|
2:1 Interlace
|
|
Optical Zoom
|
23X
|
30X
|
35X
|
37X
|
|
Lens
|
3.6mm~82.8mm
|
3.4mm~102mm
|
3.4mm~119mm
|
3.5mm~129mm
|
|
Hor. Resolution
|
Color: 540TVL, Mono:
600TVL
|
|
S/N Ratio
|
>50dB
|
>52dB
|
|
Min.Illumination
|
Color: 0.05Lux
Mono:0.01Lux
IR: 0Lux
|
Color: 0.5Lux(1/50s),
0.025(1/1.5s)
Mono:0.01Lux(1/3s)
IR: 0Lux
|
Color: 0.003Lux
Mono:0.0001Lux
IR: 0Lux
|
|
Angle of View
|
54°(W), 2.5°(T)
|
55.8°(W), 2.0°(T)
|
55.8°(W), 1.7°(T)
|
55°(W), 1.6°(T)
|
|
White Balance
|
Auto/Manual
|
|
Day/Night Switch
|
Auto/Manual
|
|
WDR
|
On/Off
|
|
Gain Control
|
Auto/Manual
|
|
Electronic Shutter
|
1/1.5~1/30,000sec
|
1/50~1/90,000sec
|
|
Video Out
|
BNC, 1.0±0.2Vp-p,
Impedance 75Ω
|
|
OSD
|
English
|
|
Mechanical Specification
|
|
Illuminator
|
Advanced Infra-red Laser
(effective distance 250 meter)
|
|
Pan Angle
|
360° continuous
|
|
Pan Speed
|
0.1°~ 150°/sec
|
|
Tilt Angle
|
135°
|
|
Tilt Speed
|
0.1°~ 80°/sec
|
|
Preset Speed
|
Pan:150°/sec, Tilt:
80°/sec
|
|
Communication
|
RS-485
|
|
Preset Position
|
128
|
|
Preset Tours
|
4, each consists of 16
preset points
|
|
Auto Pan
|
On/Off
|
|
Angle Display OSD
|
Yes
|
|
Safety
|
Built-in surge and
transient protection
|
|
Construction
|
5mm~5mm thick
aluminum-alloy & 5mm tempered glass
|
|
Protection
|
IP66, anti-vibration,
anti-rust, anti-corrosion,
anti-vandal
|
|
Supply
|
AC24V, 50/60Hz / 30W
|
|
Dimension(HxW)
|
383.6mm x Ø258.7mm
|
|
Weight
|
Approx 15kg
|
|
Humidity
|
10%RH~90%RH
|
|
Operating Temperature
|
-40ºC~50ºC
|
|
|
|
|
