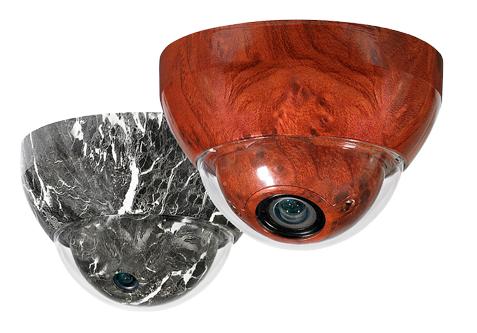

High Definition Fashion Dome Camera

DIS-S312CD / DIS-S315CD / DIS-S316CD
DIS-E312VCD / DIS-E315VCD / DIS-316VCD

DISCOVER’s latest FashionDome series changes the look of CCTV surveillance!
The FashionDome series comprises the regular high specification camera modules with wide choice of lenses. Unique aesthetic finishes to complement the modern look of designer homes and offices.

Choices of mounting available are:

	Surface mount – Model number prefix with ‘S’
	Flush mount – Model number prefix with ‘E’

Choices of lenses available are:

	Fixed iris fixed focal lens: 2.5, 2.8, 3.6, 6, 8, 12, 16, 25mm
	Fixed iris manual varifocal lens: 3.5~8mm, 2.8~12mm
	Auto iris varifocal lens: 3.5~8mm, 2.8~12mm
	Choice of manual iris lens 2.5/2.8/3.6/4/6/8/12mm or varifocal auto iris lens.

Features:

	1/3″ SONY SuperHAD CCD
	High Resolution：540TVL
	Day/Night Auto Switch
	Minimum Illumination, Color：0.1LuxF1.2, B/W：0.01LuxF1.2

Specification

	DIS-S312CD DIS-E312CD	DIS-S315CD DIS-E315CD	DIS-S316CD DIS-E316CD	DIS-S312VCD DIS-E312VCD	DIS-S315VCD DIS-E315VCD	DIS-S316VCD DIS-E316VCD
Image Sensor	1/3″ SONY Super HAD CCD
Signal Format	PAL / NTSC
Total Pixels	PAL: 752(H) x 582(V)	PAL: 795(H) x 596(V)		PAL: 752(H) x 582(V)	PAL: 795(H) x 596(V)
Scanning	2 : 1 Interlace scanning
Sync System	Internal
Horizontal Resolution	420 TV	480 TVL	540 TVL	420 TV	480 TVL	540 TVL
Minimum llumination	Color : 0.1Lux F1.2,      B/W : 0.01Lux F1.2
Gain	36dB
S/N Ratio	> 50dB
White Balance	Auto
Day / Night Switch	Auto
Video Output	1.0 Vp-p Composite output, 75, BNC
Dome Finishing	Various
Lens	2.5 / 2.8 / 3.6 / 4 / 6 / 8 / 12 mm selectable			2.8 ~ 12 mm auto iris lens
Power Supply / Consumption	DC12V ± 10% 3.5W
Operating Temperature	-10°C ~ +50°C
Dimension (D×H)	Base Diameter 113.7 x Height 75.7 mm
Weight	490 g	490 g	490 g	520 g	520 g	520 g
