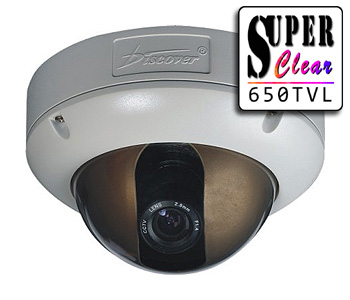

Super High Resolution Fixed Dome Camera

DIS-328CD / DIS-328VCD

bullet Water-proof, vandal-proof, rugged design.
bullet 1/3″ SONY CCD.
bullet English / Chinese OSD Menu.
bullet High Resolution, 650TVL.
bullet Minimum Illumination 0.001Lux F1.2.
bullet IR-CUT Mode, Auto Switch Mode, Color, Mono, Ext Control selectable.
bullet Built-in Lens.
bullet 256 Zones Exposure Area, 256 Zones Auto White Balance.
bullet 4 zones Motion Detect with Alarm Output.
bullet Digital Dynamic Noise Reduction.
bullet High Performance 14bit DSP.
bullet Supply Voltage : DC12V/AC24V.


Model DIS-328CD DIS-328VCD
Image Sensor 1/3" Sony CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing
Total Pixels (H x V) PAL: 795 x 596 NTSC: 811 x 508
Sync System Internal/ Line Lock Selectable
Auto Gain On / Off
Lens Choice of 4/6/8/12mm 9-22mm Varifocal
Min Illumination Color: 0.1 Lux F1.2
Mono: 0.001 Lux F1.2
Electronic Shutter PAL : 1/50-1/120,000  NTSC : 1/60-1/120,000
Iris Mode DC IRIS (Shutter 1/50~1/120,000 adjustable) / ELC selectable
Horizontal Resolution 650 TVL
S/N Ratio 48dB(min) / 54dB(max) (AGC Off)
Video Output 1.0 Vp~p composite 75ohm
OSD Menu English / Chinese selectable
Day / Night Switch Auto / Color / Mono / Ext sync selectable
Mirror Image On / Off
Picture Definition 1~20 selectable
Strong BLC Off / Low / Medium / High
Motion Detect 4 zone programmable, alarm output
Privacy Mask 4 zone programmable, 7 color selectable
Operating Temperature -10 ~ 50°C
Power Supply / Consumption DC12V or AC24V / 90mA
Dimension Base Φ 130 x 117 (H) mm
Weight 830g
