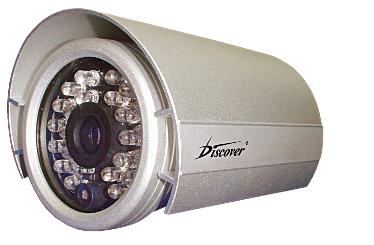

Infra-Red Camera

DIS-206C / DIS-206G / DIS-206H

bullet 1/3" Sony CCD
bullet IR Distance 18 meter
bullet 540 TVL (DIS-206H only)
bullet Built-in IR, up to 0 Lux illumination
bullet Auto Gain Control in low light condition
bullet Lens 6.0mm F1.8 or others option

Specification

Model
DIS-206C
DIS-206G
 DIS-206H
Image Sensor 1/3" Sony CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing scanning
Total Pixels (H x V) PAL: 500 x 582
NTSC: 510 x 492 		PAL: 795 x 596
NTSC: 811 x 508
Sync System Internal
Min Illumination 0 Lux
Horizontal Resolution 420 TVL 480 TVL 540 TVL
IR Effective Distance 18m
AGC Auto
S/N Ratio > 48dB
Video Output 1.0 Vp~p composite 75ohm
Gamma Characteristic 0.45
Shutter Speed Auto (1/50 ~ 1/100,000s)
Lens Standard 6mm F1.8 (optional 4.3/8/12mm)
Operating Temperature -10 ~ 45°C
Power Supply / Consumption DC12V / 300mA
Weight 450g
Dimension Base Φ 84 x 115.5 (H) mm
