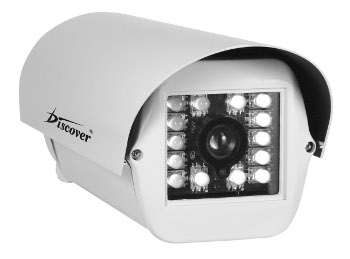

Infra-Red Camera
DIS-208C / DIS-208G / DIS-208H
1/3" Sony CCD
IR Distance 30 meter
540 TVL (DIS-208H only)
Built-in IR, up to 0 Lux illumination
Auto Gain Control in low light condition
Lens 16mm F2.0 or others option
Specification
Model
DIS-208C
DIS-208G
DIS-208H
Image Sensor
1/3" Sony CCD
Signal Format
PAL / NTSC
Scanning System
2:1 Interlacing scanning
Total Pixels (H x V)
PAL: 500 x 582
NTSC: 510 x 492
PAL: 795 x 596
NTSC: 811 x 508
Sync System
Internal
Min Illumination
0 Lux
Horizontal Resolution
420 TVL
480 TVL
540 TVL
IR Effective Distance
30m
AGC
Auto
S/N Ratio
> 48dB
Video Output
1.0 Vp~p composite 75ohm
Gamma Characteristic
0.45
Shutter Speed
Auto (1/50 ~ 1/100,000s)
Lens
Standard 16mm F2.0 (optional 8/12mm)
Operating Temperature
-10 ~ 45°C
Power Supply / Consumption
AC220V / 12W
Weight
2000g
Dimension
Base Φ 113 x 106 (H) x 255 (W) mm
