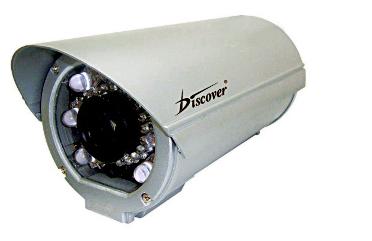

Infra-Red Camera

DIS-209C / DIS-209G / DIS-209H

bullet 1/3" Sony CCD
bullet IR Distance 50 meter
bullet 540 TVL (DIS-209H only)
bullet Built-in IR, up to 0 Lux illumination
bullet Auto Gain Control in low light condition
bullet Lens 25mm F2.0 or others option

Specification

Model
DIS-209C
DIS-209G
 DIS-209H
Image Sensor 1/3" Sony CCD
Signal Format PAL / NTSC
Scanning System 2:1 Interlacing scanning
Total Pixels (H x V) PAL: 500 x 582
NTSC: 510 x 492 		PAL: 795 x 596
NTSC: 811 x 508
Sync System Line-in
Min Illumination 0 Lux
Horizontal Resolution 420 TVL 480 TVL 540 TVL
IR Effective Distance 50m
AGC Auto
S/N Ratio > 48dB
Video Output 1.0 Vp~p composite 75ohm
Gamma Characteristic 0.45
Shutter Speed Auto (1/50 ~ 1/100,000s)
Lens Standard 25mm F2.0 (optional 9~22mm)
Operating Temperature -10 ~ 45°C
Power Supply / Consumption AC220V / 13W
Weight 1700g
Dimension Base Φ 114 x 111 (H) x 260 (W) mm
