MPEG4 H.264 Network PTZ High Speed Dome Camera

DIS-SD/IP Series


The DIS-SD/IP Series Network PTZ Dome camera is a heavy-duty outdoor speed dome camera with built-in Network Video Server module for smooth video streaming up to 4CIF resolution. It is designed to operate under various environmental conditions and ensures the most demanding application of video surveillance.

DIS-SD/IP Series Network PTZ Dome camera had been installed in extreme weather condition such as desert and the ice-covered territories.

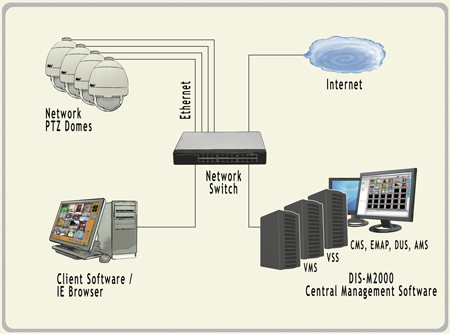

Network diagram

Specification

Model DIS-SD2200UT/IP DIS-SD2300UT/IP DIS-SD2700UT/IP DIS-SD3000UT/IP
Camera/Optics Specification
Image Sensor SONY 1/4 " CCD
Video Format PAL / NTSC
Horizontal Resolution  Color: 480TVL  Color: 540TVL, B/W: 600TVL
S/N Ratio  More than 50dB
Minimum Illumination  Color: 1Lux F1.6 Color: 1Lux (1/50),
0.1Lux (1/3) ,
B/W: 0.01Lux (1/3)  		Color: 0. 003 Lux F1.6 ,
B/W: 0.0 00 1Lux F1.6 		Color: 0.5Lux ( 1/50 ) ,
0.05Lux (1/3),
B/W: 0.01Lux (1/3)
Scanning 2 : 1 Interlace 1.1 Progressive 2 : 1 Interlace 1.1 Progressive
Lens 4 . 0 ~ 8 8 mm 3.6 ~ 82.8 mm 3.25 ~ 88 mm 3.4 ~ 119 mm
Angle of View  47.3 ° (Wide) ~ 2. 2 ° (Tele)  54 ° (Wide) ~ 2.5 ° (Tele)  59 ° (Wide) ~ 2. 4 ° (Tele)  55.8 ° (Wide) ~ 1.7 ° ( Tele )
Zoom Ratio  22X Optical, 12X Digital  23X Optical, 12X Digital 27X Optical, 12X Digital  30X Optical, 12X Digital
White Balance Auto / Manual
Wide Dynamic Range (WDR) -  Yes  - Yes
Electronic Image Stablizer (EIS)  - Yes
Network Specification
Compression MPEG4 Part 10, H.264
Image Resolution  QCIF, CIF, 2CIF & 4CIF selectable
Bit Rate  32kbps ~ 4000kbps selectable
Communication Port Ethernet, RJ45, 10/100M self adaptation
Network Protocol TCP/IP, HTTP, DHCP, DNS, RTP/RTCP, FTP, SMTP, NTP, SNM
PTZ Protcol  Pelco - P, Pelco -D s tandard ( o ther protocol available)
Transmission LAN, ADSL, DDN, ISDN, VPN, Fiber Optics
Dual Video Streaming  Yes
Software Windows XP: Commercial License DIS-M2000 Central Management Software & Free client software & IE browser
Mechanical Specification
Dome Cover Clear & Tinted
Dome Diameter 6"
Pan Angle 360 ° continuous pan
Pan Speed 0.1 ° ~ 300° /sec
Tite Angle 0 ~ 100°
Title Speed 0.1° ~ 150° /sec
Auto Flip Vertical 90°
Preset Positions 128
Preset Tours 8
Pattern Memory Track 1
Alarms 4 inputs, 2 outputs
Safety Built-in current surge and lightning protection
Fog Control Yes
Protection Class IP66
Power / Consumption 24VAC / 20W (45W with heater)
Operating Temperature -40° C ~ +60° C
Physical Aluminum alloy construction
Dimension Φ 200 × H 278 mm
Weight Approx 5.0 kg
