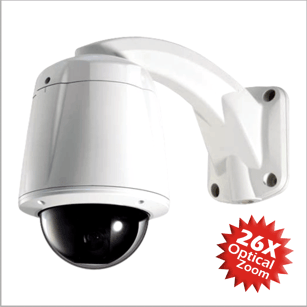

The CISEYE IP
Speed Dome
Camera,
CIP-800 is designed
particularly
for outdoor
surveillance
with remote
monitoring
and
control
applications.
It provides
high quality
Motion JPEG
and MJPEG-4
video, with
remote pan,
tilt and
zoom control
over IP
networks. |
| |
The CIP-800 features an
26x optical
zoom, auto
focus lens
and a 1/4
inch SONY Ex
View HAD
interlaced
CCD image
sensor. It
has an IR-cut
filter that
can be
automatically
or manually
removed,
depending on
the light
conditions.
This enables
the camera
to capture
color video
in light
conditions
down to
0.3 lux,
and black &
white
video in
dark
conditions
as low as
0.005 lux. |
| |
Due to our
Micro-stepping
technology,
the CIP-800 can move to
any
positions
with fast
speed up to
360°/sec as
well as
ultra low
speed down
to
0.05°/sec.
It covers
continuous
360° panning
and 90°
tilting
range and
provides 128
preset
positions
and 8 Group,
4 Pattern, 4
Swing and 8
Privacy Zone
Masking. |
| |
Furthermore,
by clicking
the buttons
on web
viewer, you
can control
all high
level
functions
remotely.
Our vector
drive
technology
guarantees
that camera
always moves
an optimal
path. This
effort
provides a
minimum
arrival time
as well as
an ultimate
natural
combinational
motion of
pan and
tilt. |
| |
 |
 |
|
| Fast &
Silent
Motion |
 |
Lightning Speed: MAX. 360°/sec |
|
|
Smooth Manual Speed: MIN. 0.05° /sec |
|
|
Lowest Noise & Lowest Vibration
|
|
|
Endless 360° Pan Rotation |
|
|
Shortest Path by Vector Drive Technology |
|
|
High Accuracy with Micro-Stepping |
|
|
|
|
| Superior
Zoom
Camera |
|
Zoom Control (Optical X26) |
|
|
Day & Night (IR Cut Filter) |
|
|
|
|
| Wide
Connectivity
Support |
|
Static, Dynamic, PPPoE Support |
|
|
Dynamic IP Support with DDNS |
|
|
|
|
|
| Stable
IP Speed
Dome
Camera |
|
Embedded Linux OS |
|
|
|
|
| Powerful
Features |
|
H/W based Moving Object Detection |
| |
| • |
Flexible Sector Masking using 24x15 Matrix |
| • |

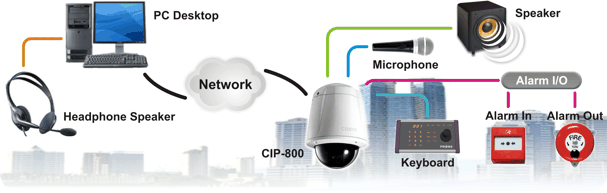

Various Event Handling: Alarm Out, Audio Out |
|
|
|
1 CH. Loop - Through out for DVR, VCR & etc. |
|
|
|
| High
Frame
Rate
with
Superior
Video
Quality |
|
|
|
| Various
Software
Support |
|
Web Viewer |
| |
| • |
Pure web browser - based Monitoring |
| • |
PTZ control, Motion detection setup & etc. |
| • |
Remote Settings and Firmware Upgrading |
|
|
|
CISEYE VS Multi-View & Recording Software |
| |
| • |
Simultaneous Monitoring & Recording up to 16 CH |
| • |
Event Recording by Schedule, Alarm, Motion |
| • |
Automatic HDD Shift in Recording Mode |
|
|
|
|
|
|
|
| |
| |
|
| Embedded Hardware |
| CPU |
- |
32 Bit RISC Processor |
| OS |
- |
Embedded Linux |
| Flash Memory |
- |
8MB |
| Network |
- |
10/100 Base-T Ethernet (RJ-45) |
| Compression |
- |
Selectable MJPEG & MPEG-4 |
| Video Frame Rate |
- |
30 @ 720x480 : 25 @ 720x576 |
| Audio |
- |
ADPCM Bidirectional |
| Motion Detection |
- |
Hardware |
| Motion Detection Setup |
- |
Flexible sector masking using 24x15 grid |
|
|
|
| Camera |
| Image Device |
- |
1/4” SONY Ex View HAD CCD |
| Zoom |
- |
X26 Optical and X10 Digital Zoom |
| TV System |
- |
NTSC/Pal |
| Effective Pixel |
- |
786(H )x494(V) / 752(H)x582(V) |
| Resolution |
- |
480 TV Lines |
| White Balance |
- |
Auto / Manual / Indoor / Outdoor |
| BLC |
- |
On / Off Selectable |
| Min. Illuminance |
- |
0.3 Lux (Day) / 0.005 Lux (Night) |
| Day & Night |
- |
Auto Day / Night (IR Cut Filter) |
|
|
|
| |
|
| |
| Pan/Tilt |
| Range |
- |
Pan: 360° (Endless), Tilt: 90° |
| Speed |
- |
Preset: 360°/sec
Manual: 0.05°~160°/sec |
| Functions |
- |
128 Preset,4 Pattern, 8 Swing, 8 Group, 8 Privacy Zone |
|
|
|
| Mechanical |
| Camera Mount |
- |
Wall or Ceiling |
| Dimension |
- |
Dome: ø 152
Housing: ø 215 x 260 |
| Weight |
- |
Approx. 2.5kg |
|
|
|
|
| |
|
| Environment |
| Fan/Heater |
- |
Built In |
| Operation Temp. |
- |
30°C~50°C
(-22°F~122°F) |
|
|
|
|
|
|
| |
All
specifications
are
subject
to
change
without
notice.
All
other
trademarks
are
owned
by
their
respective
companies. |
|
| Viewing System Requirement |
| - |
|
Operating system: |
| |
|
Microsoft Windows 2000, 2003, XP |
| - |
|
Processor: Pentium IV or above |
| - |
|
RAM: 512MB or above |
| - |
|
Graphic Memory: 128MB or above |
| - |
|
Browser: Internet Explorer 5.X or above |
|
|
|
|
|
|
|
|
